308 lbs load capacity Heavy Duty Machined Steel Ball Transfer Unit - M10 threaded bolt Bearing transfer

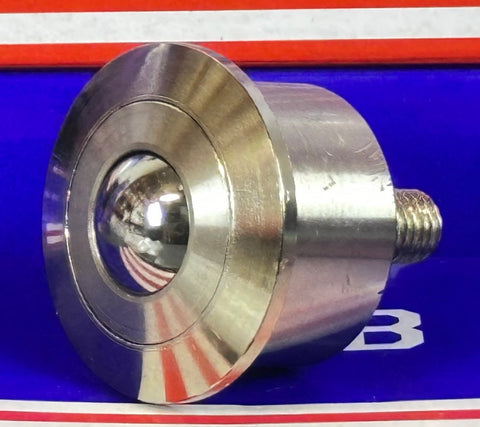

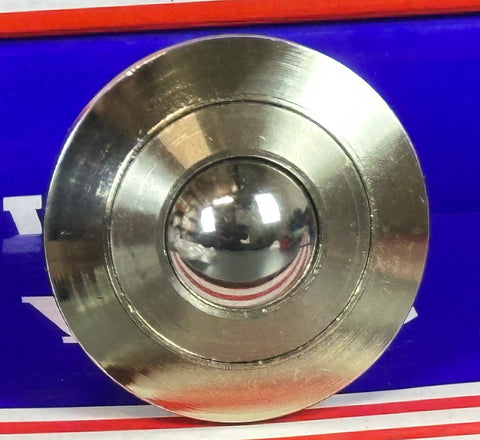

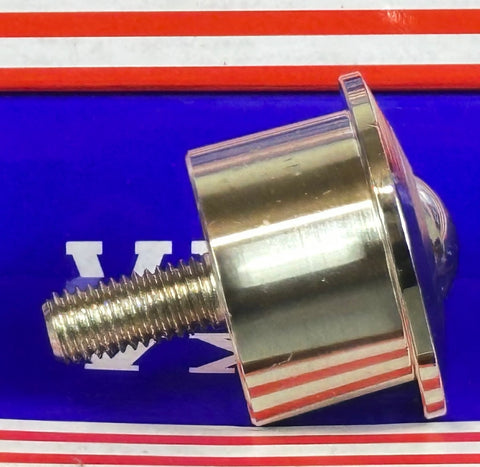

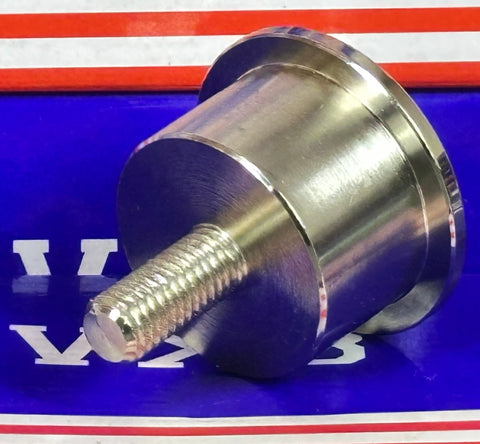

308 lbs Ball Transfer Unit with M10 Threaded Bolt
✔️ Heavy Duty Machined Steel - Chrome Plated - One Unit

This heavy-duty ball transfer unit features a solid machined steel body with an integrated M10 threaded bolt for easy mounting. With a 308 lb load capacity, it’s ideal for transfer tables, cargo handling, and conveyor systems that demand durability and smooth multi-directional movement.

✅ Load capacity: 308 lbs
✅ Breaking load: 352 lbs
✅ Main ball diameter: 22.225mm (0.875")
✅ Housing diameter (D): 36mm (1.41")
✅ Overall height (H): 31mm (1.22")
✅ Flange thickness (h1): 4mm (0.157")
✅ Recess depth (h2): 21.2mm (0.834")
✅ Mounting length (L): 45mm (1.77")
✅ Thread length (t): 22mm (0.866")
✅ Thread size: M10 (0.393" diameter)
✅ Material: Machined steel with chrome plated ball and cover
✅ Hardened support cup for long wear life
✅ Quantity: 1 bearing unit
✅ Weight: 0.11 lb

💡 What’s the benefit of a threaded ball transfer unit?
Threaded ball transfer units allow for quick and secure installation in frames or platforms without welding or complex brackets. They're perfect for flexible load-handling systems that need strong, repositionable support.

An efficient, bolt-in solution for smooth rolling under heavy loads in any direction.
