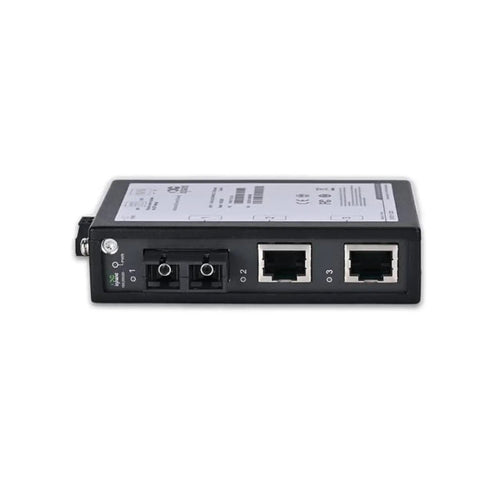

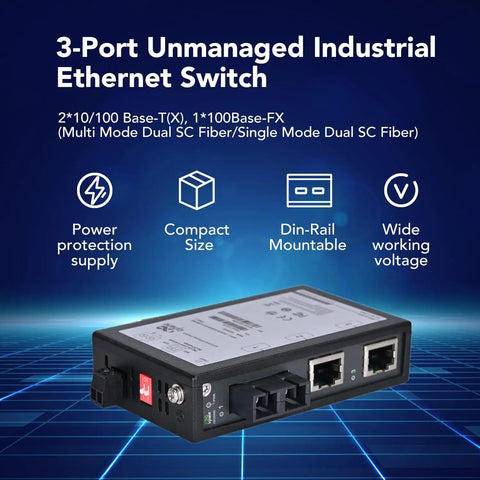

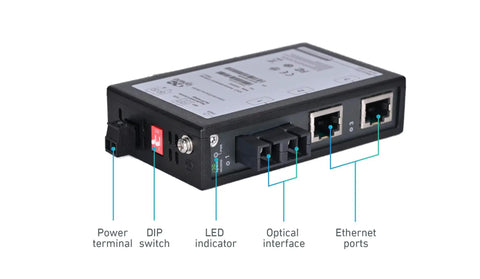

3 Port Unmanaged Industrial Ethernet Switch and Media Converter With 2x 10/100 Base-TX RJ45 Ports and 1x 100Base-FX Fiber, Single Mode Up To 20Km, Wide -40C to 75C Temperature, IP30 Enclosure, UL Certified
✔️ 2x 10/100 RJ45, 1x 100Base-FX, -40 to 75°C, IP30, UL
This rugged, unmanaged industrial Ethernet switch is built for harsh environments and is commonly used on factory floors, warehouses, and remote locations. It combines two fast Ethernet ports with a long-range fiber link to extend networks over distances up to 20 km depending on fiber. Its sturdy metal enclosure, wide temperature tolerance, and DIN-rail mounting make it ideal for compact control panels and equipment enclosures.
✅ 2x 10/100Base-TX RJ45 ports for auto-negotiation
✅ 1x 100Base-FX fiber port (single-mode, 1310 nm) up to 20 km
✅ Switching capacity up to 16 Gbps, supports 10/100 Mbps inputs

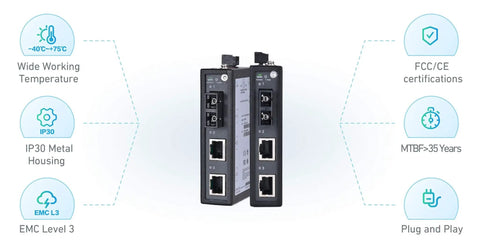

✅ Wide operating temp -40 to 75°C and IP30 metal enclosure
✅ Redundant 24VDC input with 4 kV surge protection and reverse polarity

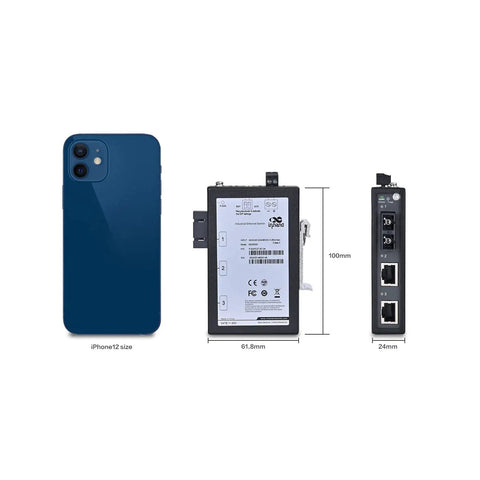

✅ DIN-rail and wall-mountable, compact size for tight spaces
✅ QoS and Broadcast Storm Protection (configurable via dip switch)
✅ UL, FCC, CE, ROHS compliant and 3-year warranty

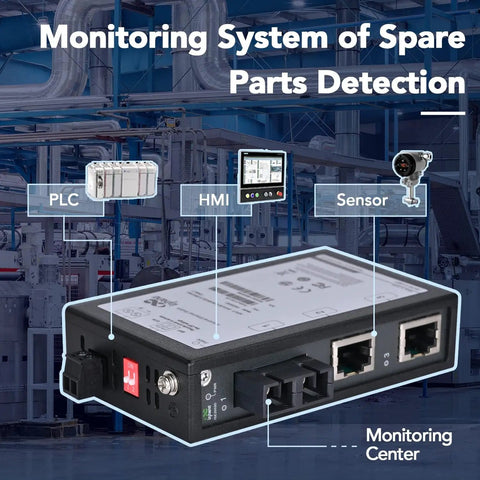

💡 What is an industrial Ethernet switch with fiber uplink used for in harsh environments?
This handy device is designed to keep critical networks online in rugged settings.
- Designed for harsh environments with wide temperature tolerance and IP30 protection
- Fiber uplink supports long-distance transmission up to 20 km on single-mode fiber
- Redundant power, surge protection, and QoS ensure stable, low-downtime networking
