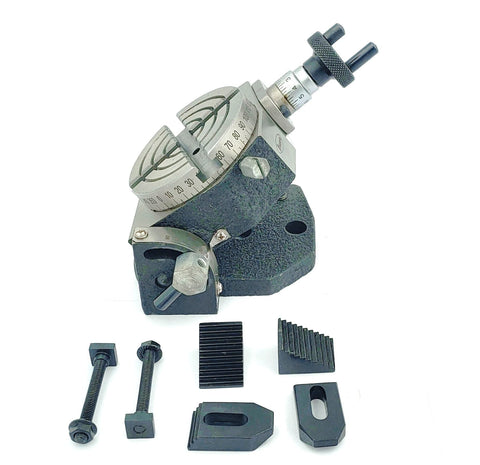

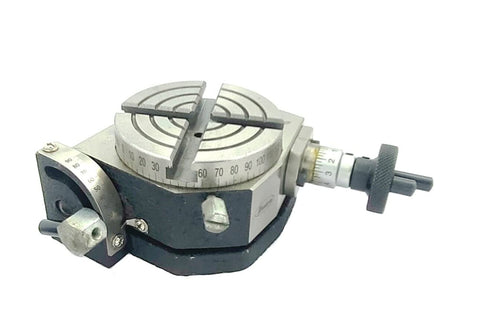

3 Inch Tilting Rotary Table With ER 20 Collet Adapter And M6 Clamp Kit, 80mm Diameter, Slick Low Profile Precision Milling Accessory With 360 Degree Scale And 1 To 36 Worm Gear For Tiny Hobbyist And Shop Builds

80 mm tilting rotary table with ER20 adapter & clamp kit
✔️ 80 mm dia tilting table, 0-90°, 360° scale, 1:36 worm gear

Compact 80 mm diameter tilting rotary table designed for lightweight milling, indexing, and gear work in hobbyist shops or benchtop mills. It supports precise angle cuts and steady workholding for small parts.

✅ 80 mm (3.15") diameter tilting table with 0-90° tilt and angle lock

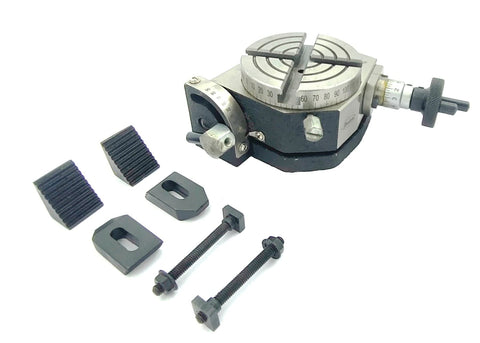

✅ 360° graduated scale with 10-minute divisions for precise indexing
✅ Worm gear ratio 1:36; 10° per full turn of the handwheel

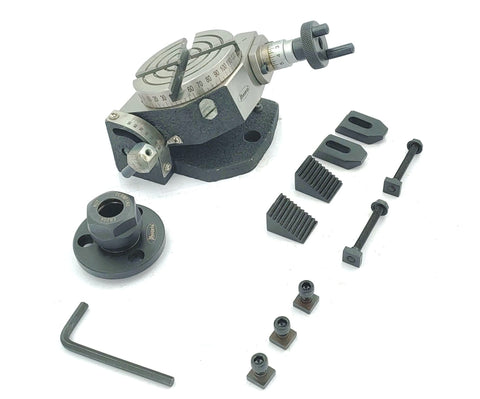

✅ ER20 collet adapter and M6 clamp kit included for secure tooling
✅ Base footprint 100 x 105 mm (3.94" x 4.13"), height ≈ 62 mm (2.44")
✅ Assembly height with ER20 adapter mounted ≈101 mm (3.98"), weight 2.700 kg (5.95 lb)
✅ Two 8 mm drill holes at approx 82 mm PCD for mounting
✅ Suitable for gear teeth cutting, gear milling, splines, and racks

💡 What is a tilting rotary table used for in small milling setups?
This handy tool helps with precise indexing and angled milling on compact machines.
- Precision indexing for gears, splines, and racks
- Secure workholding on benchtop mills with ER20 adapters
- Facilitates milling at exact angles and spacing for gear teeth

✝️
