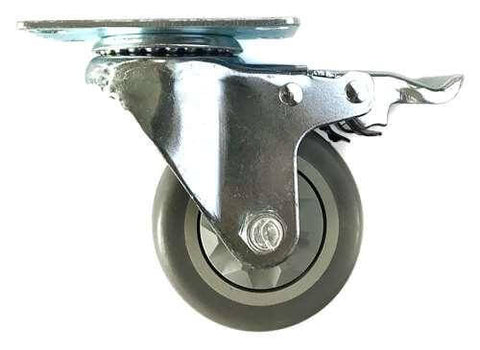

3" Inch Medium Duty Caster Wheel 176 pounds Swivel and Upper Brake Thermoplastic Rubber Top Plate

$25.99
SKU: VXB004075TPR1B
Wheel Diameter= 3" Inch" inch=75mm
Load Capacity=176 lb
Mounting Type= Top Plate
Mounting= Swivel and Upper Brake
Tire= Thermoplastic Rubber
3" Inch Caster Wheel 176 pounds Swivel and Upper Brake Thermoplastic Rubber Top Plate
  • Item Name= VXB004075TPR1B
  • Medium Duty
  • Wheel Diameter= 75mm
  • Wheel Width= 30mm
  • Wheel Diameter= 3" Inch = 75mm
  • Overall Height= 105mm
  • Overall Height Inch= 4.134"
  • Mounting Type= Top Plate
  • Top Plate Size= 93mm x 62mm
  • Hole distance= 73mm x 45mm
  • Wheel Core= Thermoplastic Rubber
  • Tire= Thermoplastic Rubber
  • Bearing type= Ball bearing
  • Load Capacity= 176 lb
  • Mounting= Swivel and Upper Brake
  • Temperature Range= -40 to 180 F

  • Mounting VXB004075TPR1B is the Low cost solution of making a project to move around by pushing or pulling. The wheel diameter is 75mm or 2.953" inch in inches. The wheel has a width of 30mm=1.181" inch. Overall height of the wheel caster is 105mm = 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 73mm x 45mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Ball bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 176 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy the VXB004075TPR1B now, just add the quantity to basket and click on Checkout.
