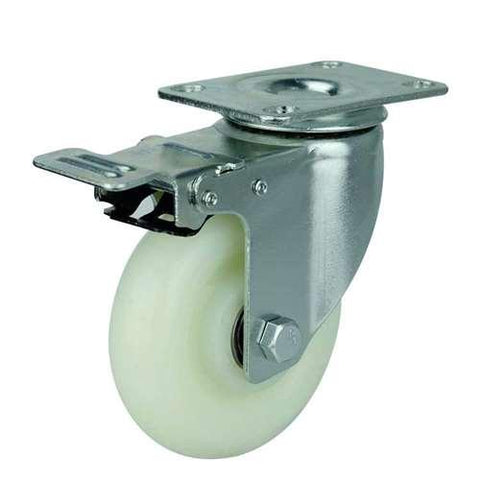

3" Inch Medium Duty Caster Wheel 176 pounds Swivel and Upper Brake Polypropylene Top Plate

$19.99
SKU: VXB004075PPB
Wheel Diameter= 3" Inch" inch=75mm
Load Capacity=176 lb
Mounting Type= Top Plate
Mounting= Swivel and Upper Brake
Tire= Polypropylene
3" Inch Caster Wheel 176 pounds Swivel and Upper Brake Polypropylene Top Plate
  • Item Name= VXB004075PPB
  • Medium Duty
  • Wheel Diameter= 75mm
  • Wheel Width= 30mm
  • Wheel Diameter= 3" Inch = 75mm
  • Overall Height= 105mm
  • Overall Height Inch= 4.134"
  • Mounting Type= Top Plate
  • Top Plate Size= 93mm x 62mm
  • Hole distance= 45mm x 72mm
  • Wheel Core= Polypropylene
  • Tire= Polypropylene
  • Bearing type= Double ball bearing
  • Load Capacity= 176 lb
  • Mounting= Swivel and Upper Brake
  • Temperature Range= -40 to 180 F

  • Make your life easier, have big objects easier to Maneuver using the VXB004075PPB Wheel Caster. Diameter size of the caster wheel has a metric standard 75mm which is equal to 2.953" inch with imperial units. The wheel has a width of 30mm=1.181" inch. Overall height of the wheel caster is 105mm = 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Low drag was achieved by a Polypropylene core on a Polypropylene tire spinning freely with a Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 176 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy our VXB004075PPB, we wish all the best.
