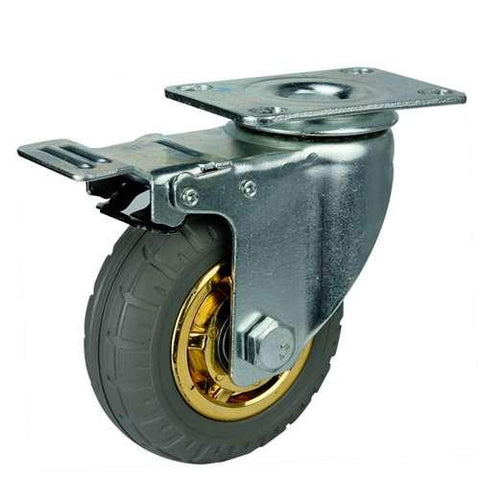

3" Inch Medium Duty Caster Wheel 132 pounds Swivel and Upper Brake Rubber Top Plate

$26.99
SKU: VXB004075RBB
Wheel Diameter= 3" Inch" inch=75mm
Load Capacity=132 lb
Mounting Type= Top Plate
Mounting= Swivel and Upper Brake
Tire= Rubber
3" Inch Caster Wheel 132 pounds Swivel and Upper Brake Rubber Top Plate
  • Item Name= VXB004075RBB
  • Medium Duty
  • Wheel Diameter= 75mm
  • Wheel Width= 35mm
  • Wheel Diameter= 3" Inch = 75mm
  • Overall Height= 105mm
  • Overall Height Inch= 4.134"
  • Mounting Type= Top Plate
  • Top Plate Size= 93mm x 62mm
  • Hole distance= 45mm x 72mm
  • Wheel Core= Rubber
  • Tire= Rubber
  • Bearing type= Ball bearing
  • Load Capacity= 132 lb
  • Mounting= Swivel and Upper Brake
  • Temperature Range= -40 to 180 F

  • Moves large items quicker using the VXB004075RBB. Diameter size of the caster wheel has a metric standard 75mm which is equal to 2.953" inch with imperial units. The wheel has a width of 35mm=1.378" inch. Overall height of the wheel caster is 105mm = 4.134" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. Low drag was achieved by a Rubber core on a Rubber tire spinning freely with a Ball bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 132 lb with a Swivel and Upper Brake type. Temperature range is -40 to 180 F. Very important notice, you need to buy the VXB004075RBB in order to get one :).
