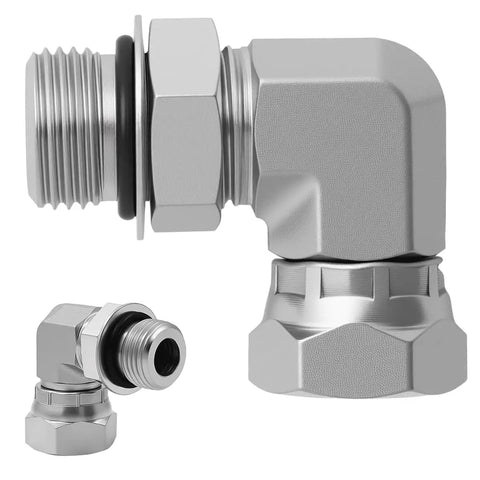

3 By 8 Inch Female NPSM Swivel To 3 By 8 Inch Male SAE ORB 90 Degree Elbow Adapter For Hydraulic Lines, J512 And J1926 Compatible, No Fuss Fitting For Tight Spots And Easy Maintenance
✔️ 360° swivel NPSM to ORB, 90° elbow, single unit, 100-5000 PSI
This single hydraulic elbow adapter connects a swivel NPSM hose to a SAE ORB port. It’s designed to route hydraulic lines through tight spaces on valves, cylinders, pumps, and manifolds in agriculture, construction, and manufacturing equipment.

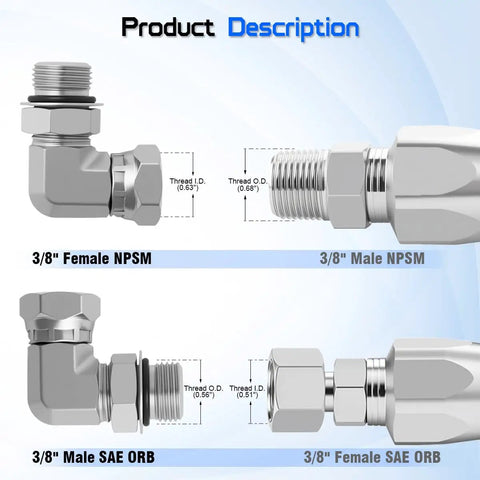

✅ 3/8-18 NPSM female swivel (-06) to 3/8 SAE ORB male (-06) per SAE J512/J1926
✅ 90-degree elbow design for tight routing

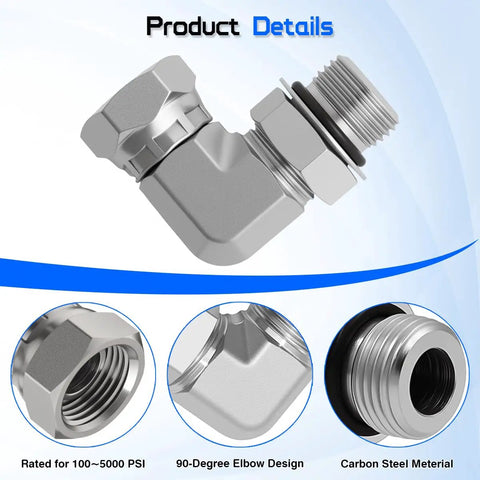

✅ Forged carbon steel with zinc plating; rated 100-5000 PSI
✅ 360° swivel on the female end; captive O-ring included

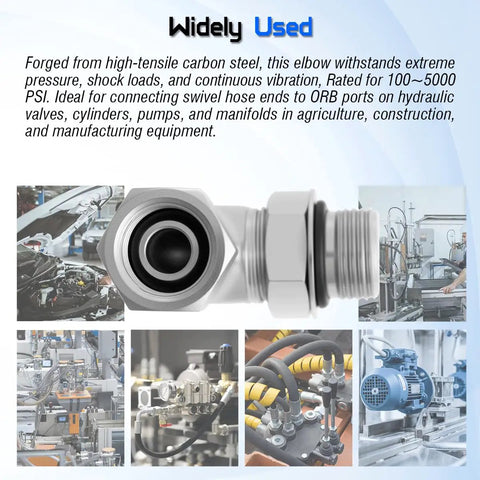

✅ Applications: valves, cylinders, pumps, manifolds in agriculture, construction, manufacturing
💡 What is a hydraulic elbow adapter used for in hydraulic systems? This handy piece connects swivel hose ends to ORB ports and helps route lines in tight spaces while maintaining a solid seal.
- 3/8-18 NPSM female swivel to 3/8 SAE ORB male compatibility (J512/J1926)
- 90-degree elbow design for clean routing and reduced hose wear
- Carbon steel with zinc plating for corrosion resistance and long life
- PSI rating 100-5000 for demanding hydraulic circuits
