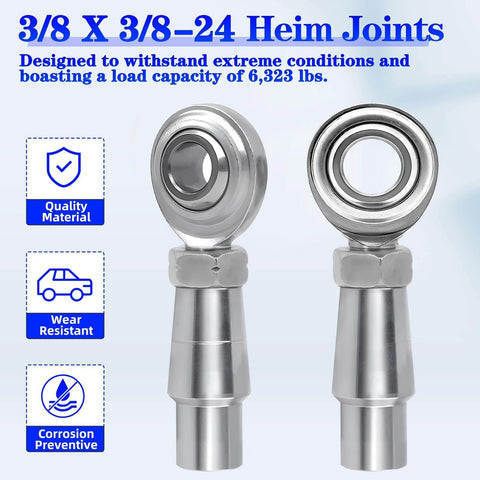

3/8 x 3/8-24 Heim Joint Rod End Kit with RH and LH Threads, Chromoly Joints with Bung and Misalignment Spacers, .058 Wall Tube Fit for Steering, Suspension, Traction Bars and Link Joints, 4 Set

3/8 Inch Heim Joint Rod End Kit with Right and Left Hand Threads
✔️ 4 Set Chromoly 3/8"-24 Heim Joints with Bungs and Misalignment Spacers

This 3/8 inch heim joint rod end kit is built for compact steering and suspension links where smooth movement and reliable strength are needed. Supplied as a full 4 set package, it’s commonly used on hot rods, sand rails, and lightweight off-road builds that require clean adjustment and solid articulation.

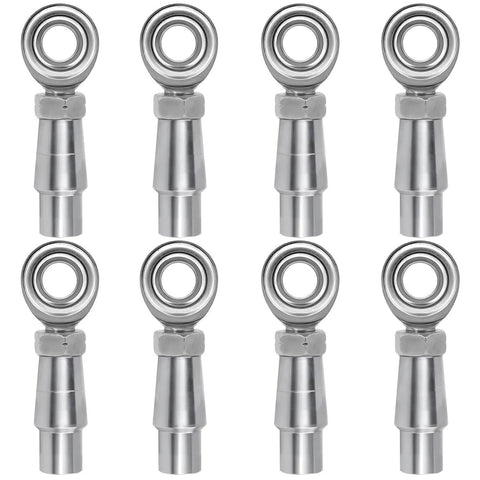

✅ Pack size: 4 set total, includes 4 RH and 4 LH heim joints with hardware
✅ 3/8"-24 threads for precise alignment and secure mounting
✅ Heat-treated C1045 chromoly steel construction for durability
✅ Silver zinc plated finish for corrosion and wear resistance
✅ Static load capacity rated up to 6,323 lbs per joint
✅ Includes lock nuts, bungs, and high misalignment spacers
✅ Designed for welding into custom steering and suspension links

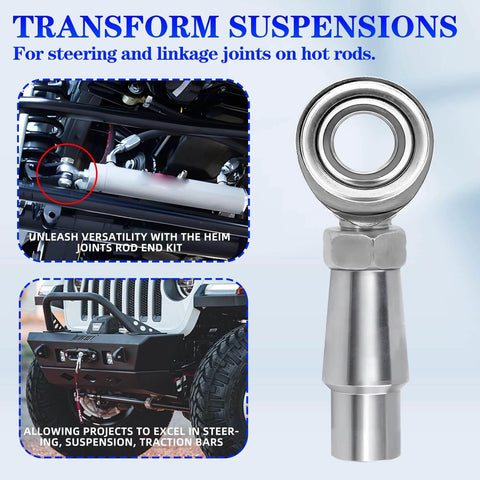

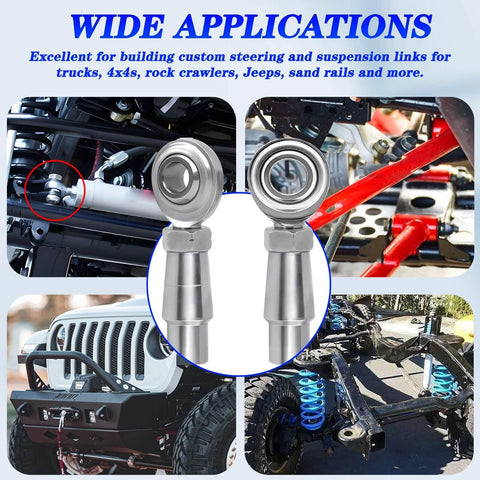

✅ Handy for traction bars, link joints, and lightweight suspension systems

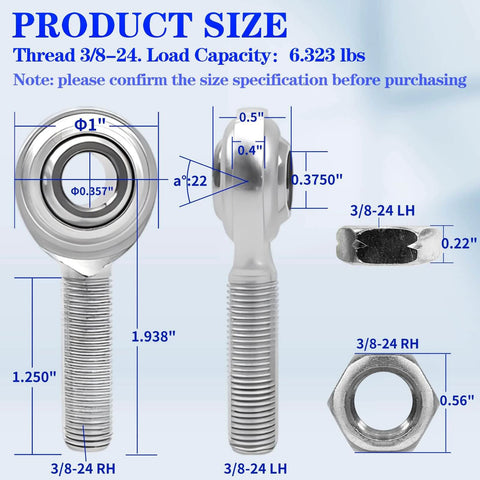

Dimensions and Specifications

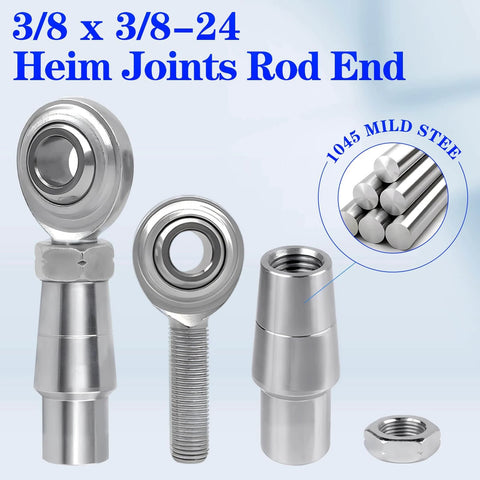

Rod End
Thread Size 3/8"-24
Shank Diameter 0.375 in
Static Load 6,323 lbs

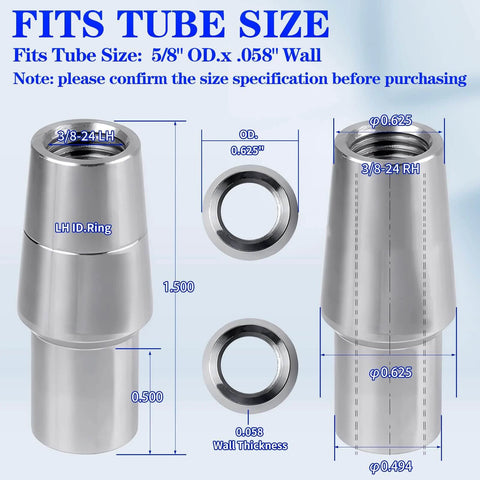

Tube Bung
Tube OD 0.625 in
Wall Thickness 0.058 in

Jam Nut
Thread Size 3/8"-24

💡 Why are 3/8 inch chromoly heim joints used in lightweight steering and suspension systems?
3/8 inch chromoly heim joints are used when space is tight but accurate motion and strength are still required.

• Compact size fits tight steering and suspension layouts

• Chromoly steel handles vibration better than mild steel

• Misalignment spacers allow smooth articulation without binding

• Right and left hand threads make alignment changes quick and easy

This kit is a handy choice when you want clean adjustment, dependable strength, and smooth performance in compact steering or suspension link setups.
