3/4 Heim Joint Rod End Kit with Right and Left Hand Threads, .750 Chromoly Panhard Joints Set with Tube Adapters, Misalignment Spacers and Jam Nuts for Steering, Suspension and Traction Bars, Heavy Duty Performance, 4 Set

3/4 Inch Heim Joint Rod End Kit for Steering and Suspension
✔️ 4 Set 0.750 Inch Chromoly RH and LH Heim Joints with Full Hardware

This 3/4 inch heim joint rod end kit is built for steering, suspension, and traction bar links where strength, smooth articulation, and easy adjustment matter. Supplied as a 4 set package, it’s a solid choice for panhard bars and custom link setups on hot rods and off-road builds.

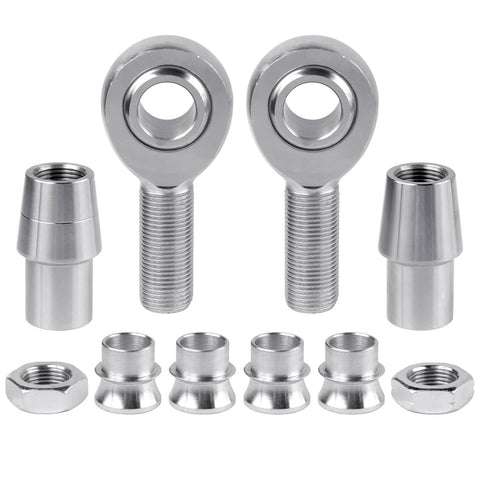

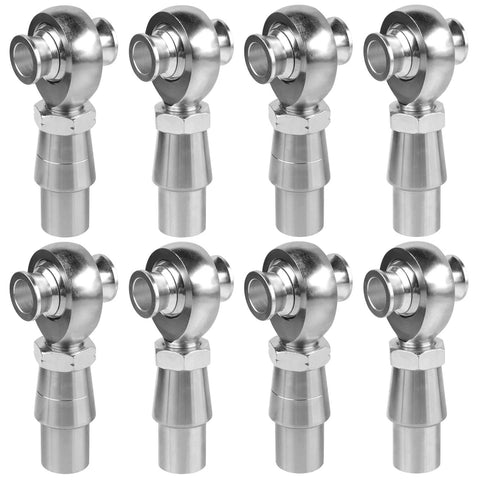

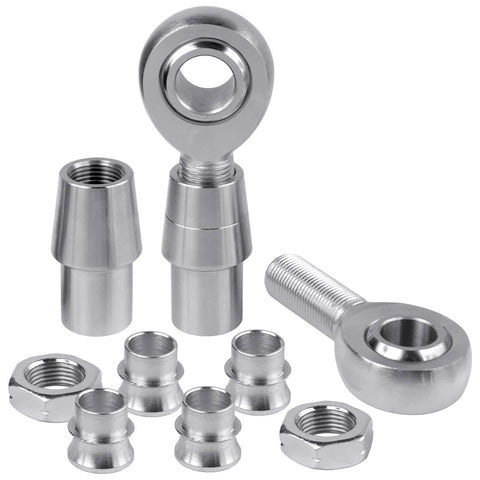

✅ Pack size: 4 sets total, includes 8 heim joints with spacers, tube adapters, and jam nuts
✅ Four right hand and four left hand 3/4"-16 threaded rod ends
✅ Heat-treated chromoly construction with hard chrome plated finish
✅ Heavy-duty static load capacity rated up to 28,081 lbs per joint
✅ 3/4 inch bore for strong, stable linkage performance

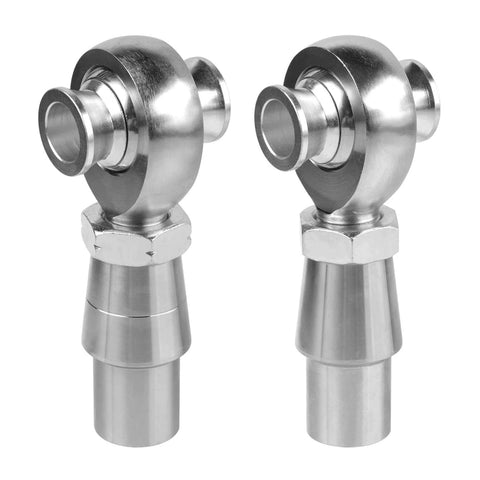

✅ Includes misalignment spacers to allow smooth angular movement
✅ Designed for MIG and TIG welding during fabrication

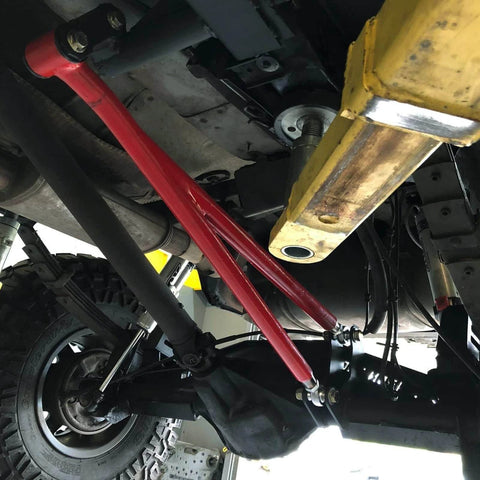

✅ Handy for steering links, suspension arms, traction bars, and link joints

Dimensions and Specifications

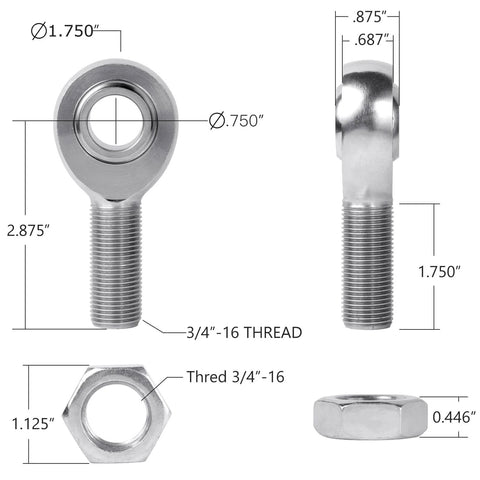

Rod End
Thread Size 3/4"-16
Shank Diameter 0.750 in
Ball Bore 0.750 in
Static Load 28,081 lbs

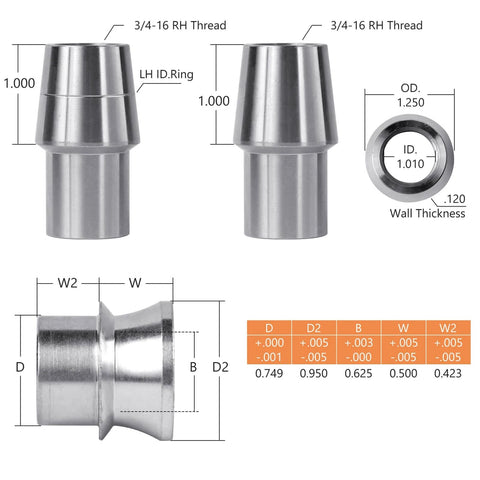

Tube Adapter
Tube OD 1.250 in
Wall Thickness 0.120 in
Tube ID 1.010 in

💡 Why are 3/4 inch chromoly heim joints a go-to option for steering and suspension links?
3/4 inch chromoly heim joints are commonly used when a balance of strength, adjustability, and articulation is needed.

• Chromoly steel holds up well to vibration, shock, and repeated load cycles

• Hard chrome plating improves wear resistance and service life

• Right and left hand threads make alignment changes quick and clean

• Misalignment spacers help prevent binding during suspension travel

This kit is a handy option when you want dependable strength, clean adjustment, and stable control in steering or suspension systems that work hard on the street or trail.
