3/4 Heim Joint Rod End Kit with Left and Right Hand Threads, .750 Chromoly Panhard Joints Set, Includes Tube Adapters, Jam Nuts and Misalignment Spacers for Steering, Suspension and Traction Bars, Heavy Duty 2 Set
3/4 Inch Heim Joint Rod End Kit with Right and Left Hand Threads
✔️ 2 Set 0.750 Inch Chromoly Heim Joints for Panhard and Suspension
This 3/4 inch heim joint rod end kit is made for steering and suspension links that need strength, reliability, and smooth articulation. Supplied as a complete 2 set package, it’s commonly used on panhard bars, traction bars, and custom suspension builds where long-term durability matters.

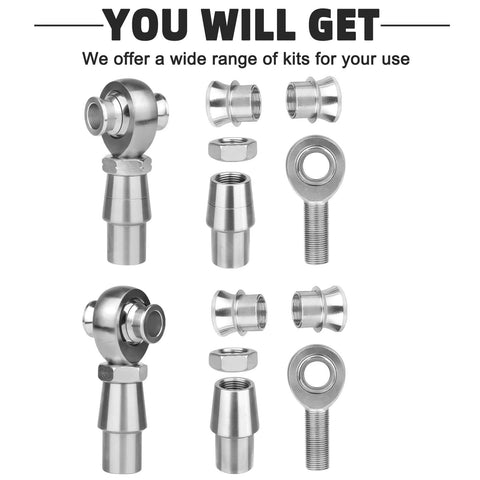

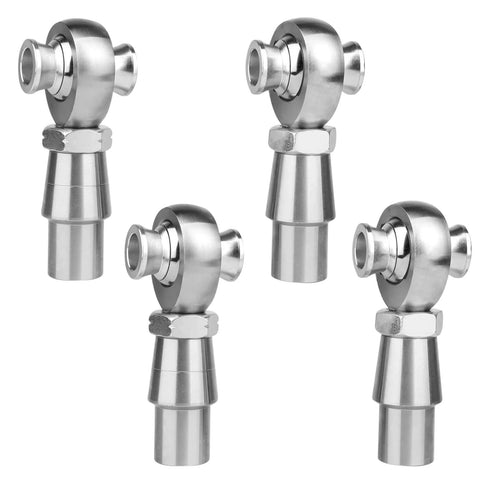

✅ Pack size: 2 sets total, includes 4 heim joints with full hardware
✅ Two right hand and two left hand 3/4"-16 threaded rod ends

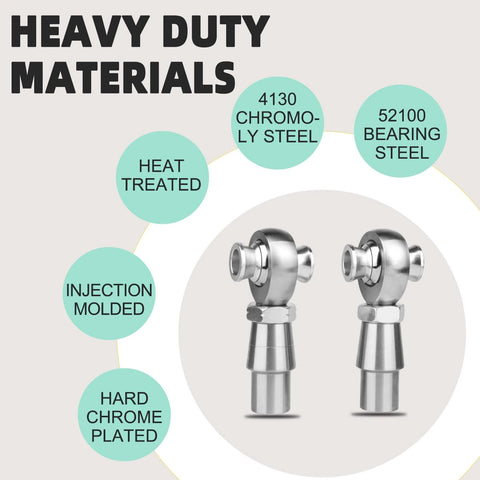

✅ Core materials include 4130 chromoly steel and 52100 bearing steel
✅ Heat-treated and hard chrome plated for extended service life
✅ Heavy-duty static load capacity rated up to 28,081 lbs
✅ Zinc-coated jam nuts for added corrosion resistance
✅ Tube adapters fit 1.000 inch ID tubing for common fabrication setups
✅ Misalignment spacers sized for standard 5/8 inch bolts

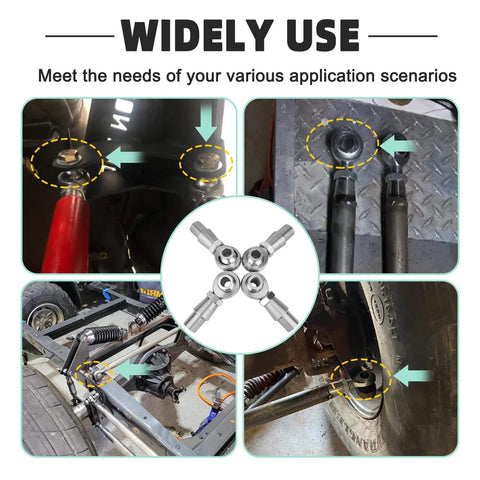

✅ Handy for steering kits, suspension links, and traction bar setups

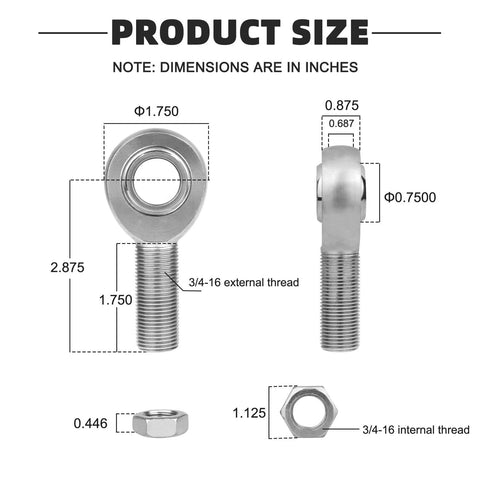

Dimensions and Specifications
Rod End
Thread Size 3/4"-16
Shank Diameter 0.750 in
Ball Bore 0.750 in
Static Load 28,081 lbs

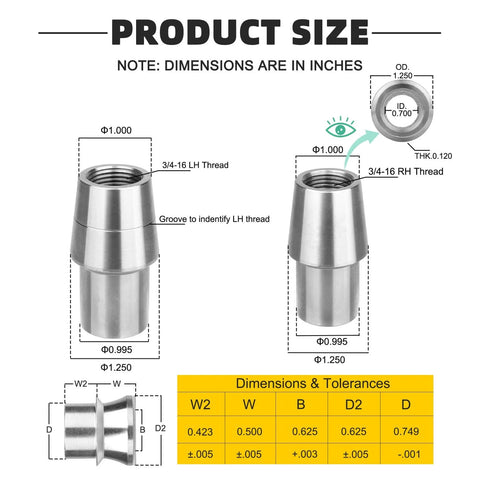

Tube Adapter
Tube ID 1.000 in
Misalignment Spacer
Bolt Size 5/8 in
💡 Why are 3/4 inch chromoly heim joints trusted in steering and suspension systems?
3/4 inch chromoly heim joints are chosen when strength, articulation, and reliability need to work together under real load.
-
Chromoly and bearing steel construction handles shock and vibration
-
Hard chrome plating reduces wear in harsh environments
-
Misalignment spacers allow smooth angular movement without bind
-
Right and left hand threads make alignment tuning fast and precise
This kit is a handy choice when you want dependable strength, smooth movement, and confidence in steering or suspension links that work hard on the street or trail.
