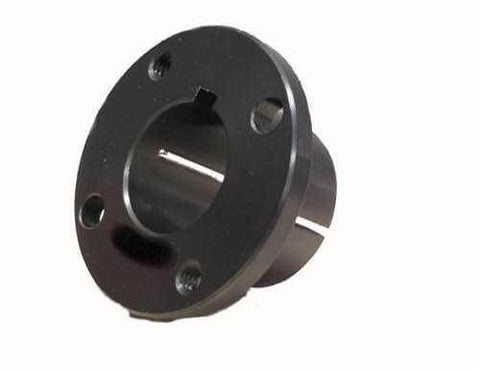

3/4" Bore H style Split Taper Bushing mount sheaves ID : 0.75" (H3/4"-HX34- QH 3/4") side view with keyway and flange

VXB

3/4" Bore H style Split Taper Bushing mount sheaves ID : 0.75" (H3/4"-HX34- QH 3/4")

$39.99 $61.00you save $21.01
SKU: RBO-H-3-4-Bore-Bushing
Item : H 3/4
Material : Cast Iron
Style : H Bushing
Quantity : One Bushing
ID : 0.75" - OD 2-1/2
H 3/4" inch Split-Taper Bushings ID: 0.75" H or QT Series


  • H 3/4" Bore Bushing
  • Flange outside diameter: 2-1/2"
  • Flange thickness: 1/4" inch
  • Length through bore: 1-1/4"
  • Material : Steel
  • Bore type: Finished w/ Keyway
  • Keyway size: 3/16 x 3/32 in
  • Bolt Diameter :1/4"
  • One Bushing


Split taper bushings mount sheaves and sprockets on shafts and are built to withstand torque generated in power transmissionThe double split steel, flanged design makes these bushings more adjustable in regards to shaft size and improves hold strength. The bushing also includes a keyway to help lock it in place on the shaft.
