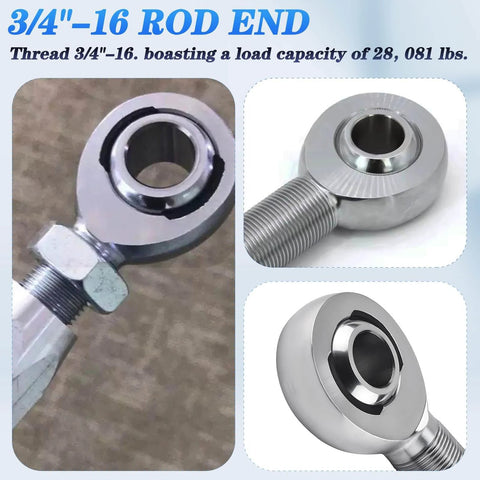

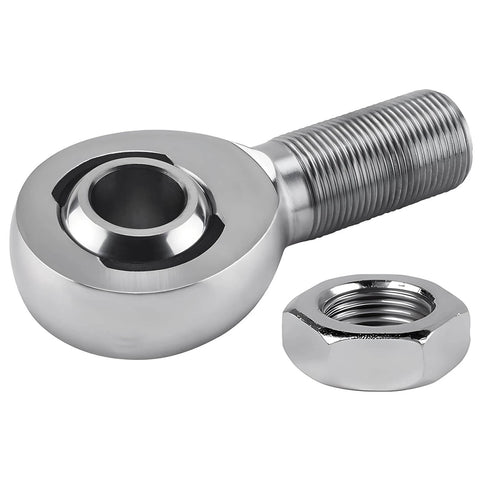

3/4 inch Heim Joint Rod End Bearing with jam nut, right hand 3/4-16 thread chromoly panhard rod end, heat treated steel with zinc plating for steering, suspension, traction bars and linkage joints, single pack

3/4 inch Chromoly Heim Joint Rod End Bearing with Jam Nut
✔️ Right Hand Thread 3/4-16 x 3/4 inch Bore Panhard Rod End

This 3/4 inch heim joint rod end bearing is made for steering, suspension, and linkage systems that need dependable strength and smooth articulation. It’s commonly used in panhard bars, traction bars, and custom link setups on hot rods, off-road vehicles, and mechanical assemblies where solid control really matters.

✅ Pack size: 1 piece including one right-hand thread heim joint and matching jam nut
✅ Rod end bore: 3/4 inch
✅ Thread size: 3/4-16 right hand
✅ Material: Heat-treated C1045 steel
✅ Finish: Silver zinc plated for corrosion resistance
✅ Maximum static load capacity: 28081 lb
✅ Precision ground and heat treated for long service life
✅ Weld-ready design for easy fabrication and upgrades
✅ Common uses: Steering links, suspension links, traction bars, panhard rods, and mechanical linkages

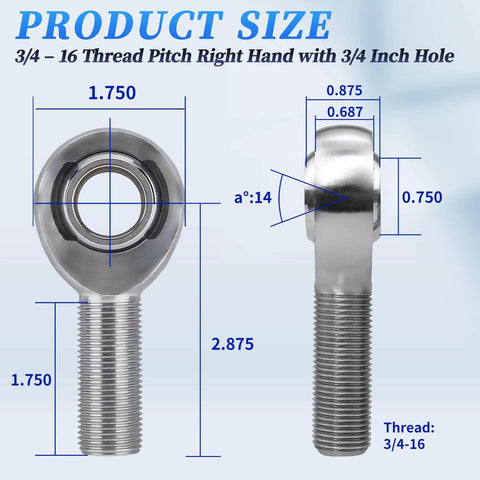

Dimensions
Bore diameter 3/4 inch
Overall width 1.75 inch
Ball width 0.875 inch
Thread size 3/4-16 RH
Thread length 1.75 inch
Center line length 2.88 inch

💡 Why are right-hand thread chromoly heim joints used in steering and linkage systems?
They provide strength, alignment control, and reliable movement under load.

• Heat-treated steel handles shock loads and repeated stress without cracking

• Fine thread pitch improves clamping force and adjustment stability

• Precision ball geometry helps reduce binding and uneven wear

This rod end bearing is a handy choice when you need strong linkage control, smooth rotation, and confidence in demanding steering or suspension applications.
