3/4-16 Heim Joint Rod End Set With Right Hand And Left Hand Threads Includes Lock Nut And Bushing, Easy Weld Install For Suspension Upgrades, Durable Off Road Performance Kit For UTVs And High Horsepower Builds

3/4-16 Heim Joint Rod End Set, left & right threads (2pc)
✔️ 2-piece kit with left/right 3/4-16 joints, lock nuts included

These heavy-duty heim joints are designed for off-road suspension and steering links in UTVs, trucks, and rock-crawlers. They install via welding and integrate with 1 1/4" tube assemblies for reliable, high-load connections.

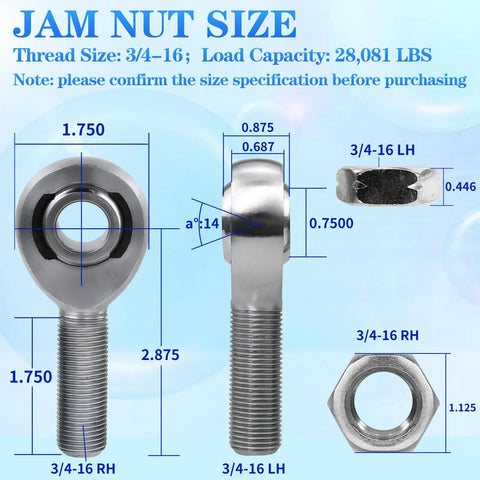

✅ Thread size: 3/4"-16
✅ Ball Bore: 0.750"
✅ Ball Width: 0.875"
✅ Centerline Length: 2.875"
✅ Thread Length: 1.750"
✅ Load Rating: 28,081 lbs

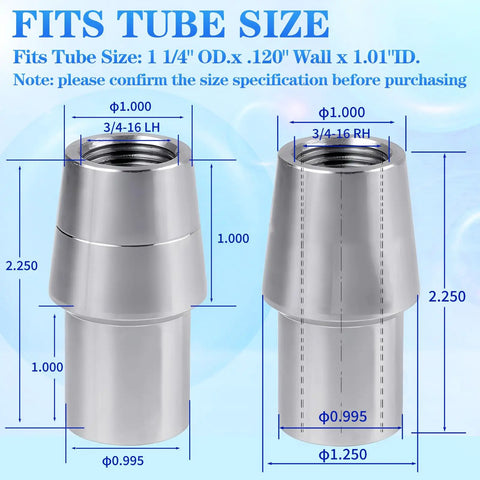

✅ Fits Tube Size: 1 1/4" OD x.120" Wall x 1.01" ID

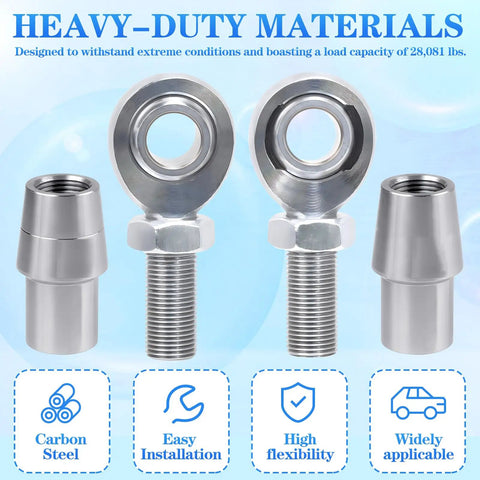

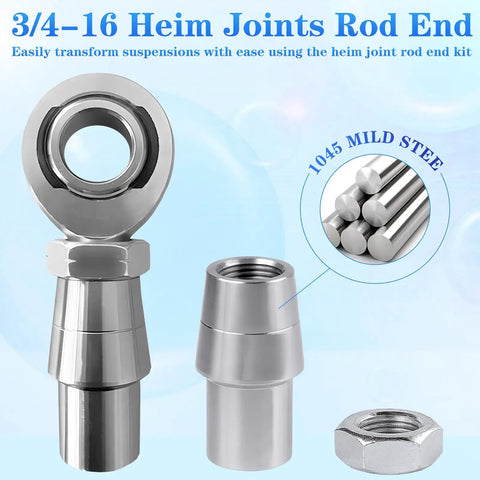

✅ Material: C1045 chromoly steel, silver zinc plated
✅ Kit contents: 1 right-hand, 1 left-hand, jam nuts, weld bungs

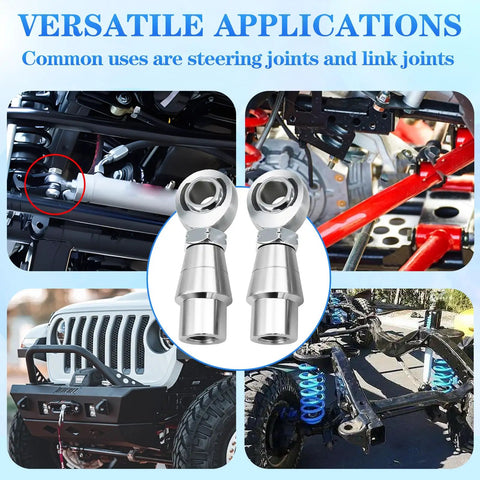

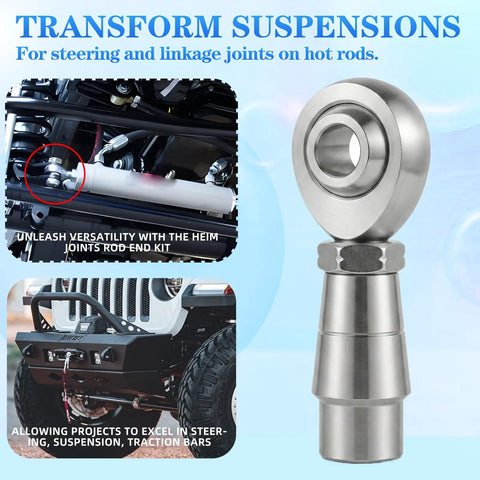

💡 What is a heim joint rod end used for in off-road suspension and steering?

This handy connector provides secure, high-load links for rugged builds. - High-load linkage for steering and suspension control arms - Durable chromoly steel construction with heat treatment - Weld-in installation compatible with 1 1/4 inch tube assemblies - Includes jam nuts and weld bungs for quick upgrades ✝️
