2x6 Hydraulic Cylinder Double Acting Welded Heavy Duty 3 Ton Unit, Two Inch Bore, Six Inch Stroke, Three Eighth Inch JIC 37 Degree End Fittings, Rated 2320 PSI, Max Thrust 6613 Lbs, Built Tough For Industrial Jobs

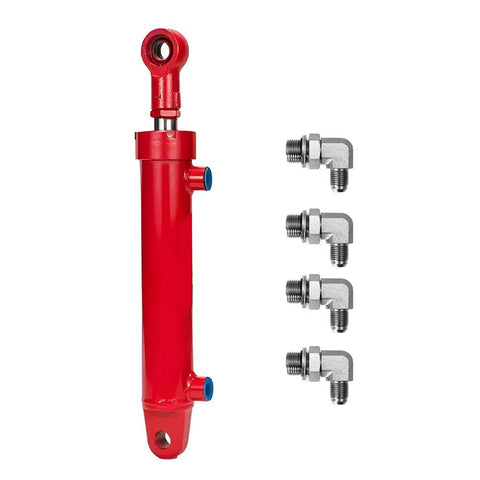

Heavy Duty Welded Hydraulic Cylinder - Single Unit, 3 Ton

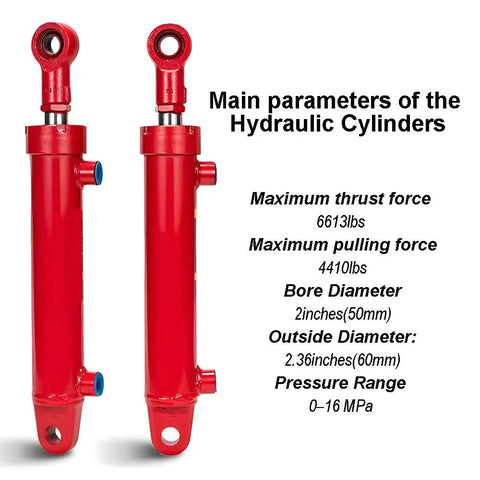

✔️ Bore 2 in (50 mm), stroke 6 in (150 mm), 2320 PSI, 6613 lb thrust

This welded double-acting hydraulic cylinder is built for rugged industrial use. It’s designed to power heavy lifting, pushing, and retracting in construction, agricultural, and material-handling equipment. Each unit uses a solid chrome-plated rod for durability and corrosion resistance, with heavy-duty steel housing and sealed seals to minimize leaks.

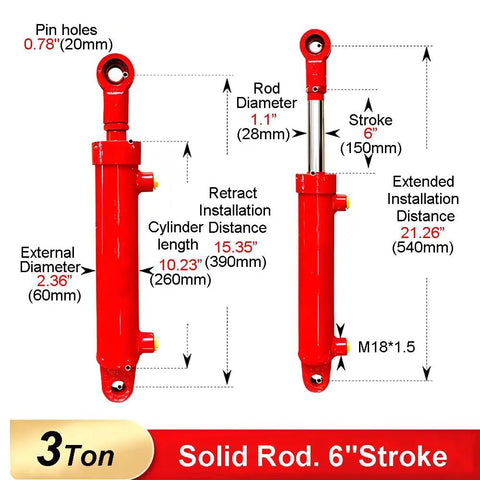

✅ Bore 2 in (50 mm), OD 2.36 in (60 mm), Stroke 6 in (150 mm), Rod 1.1 in (28 mm)
✅ Extended length 21.26 in (540 mm), Retracted length 15.35 in (390 mm)

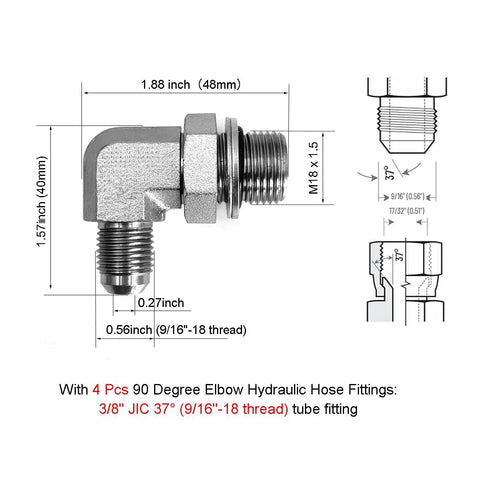

✅ Fittings: 3/8 in JIC 37° (9/16-18 thread) tube ends
✅ Rated pressure 2320 PSI; Max thrust 6613 lbs; Max pull 4410 lbs
✅ Welded heavy-duty housing with chrome-plated rod for harsh environments

💡 What is a hydraulic cylinder used for in heavy-duty industrial setups?

Hydraulic cylinders turn fluid power into linear force and motion, handy for lifting, pushing, and retracting loads in rugged environments.

- heavy-duty hydraulic cylinder uses in construction, agriculture, and material handling
- how welded double-acting cylinders deliver push and pull in rugged jobs
- chrome-plated rods and sealed housings for outdoor use
- maintenance tips for high-pressure systems and JIC fittings
