2D Lidar Sensor For Robot Nav And Mapping 360 Degree Laser Scanner With 12 Meter Range And 16000 Laser Ranging Samples Per Second For Indoor And Outdoor Robotics And Environmental Modeling
✔️ 12m range, 16k samples/s, 0.225° resolution, TTL UART 256k

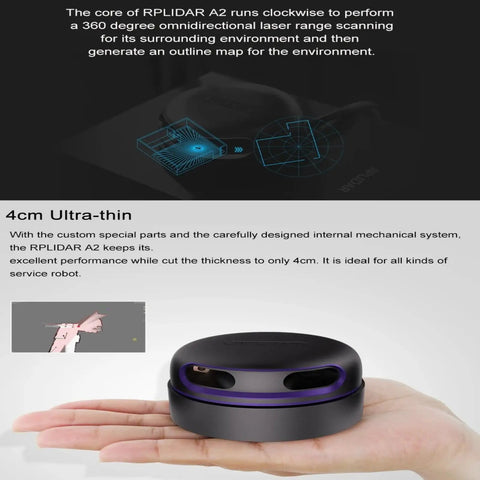

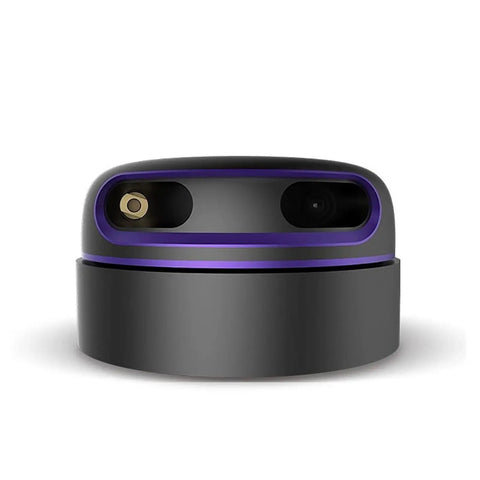

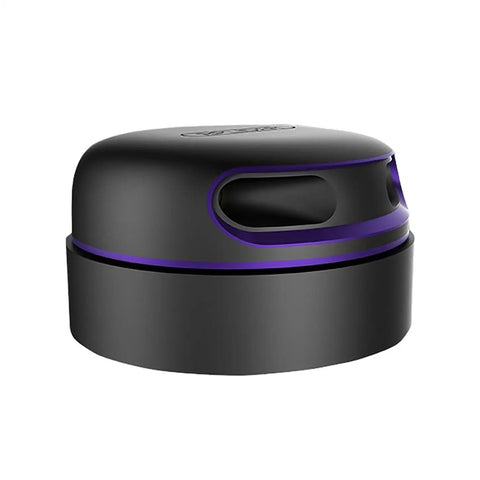

The 2D Lidar sensor is a compact, 360-degree laser scanner designed for robot navigation, mapping, and environmental sensing. It's ideal for indoor and outdoor applications like service robots, autonomous machines, and environmental modeling.
✅ Scanning range: 12 m (white) / 10 m (black); min 0.2 m
✅ Sampling rate: 16 kHz
✅ Scanning frequency: typical 10 Hz, 5-15 Hz adjustable
✅ Angular resolution: 0.225°
✅ Wavelength: 785 nm infrared
✅ Laser power: peak 10 mW; average low
✅ Interface: TTL UART, 256000 bps, 8N1
✅ Power: 5 VDC, 450 mA typical, 2500 mA max inrush
✅ Weight: 190 g; operating temp 0-40°C
✅ Safety: IEC-60825 Class 1 compliant
💡 What is a 360-degree lidar sensor used for in robotics? This handy tool helps with real-time mapping, localization, and obstacle sensing for autonomous systems.
- Real-time mapping and localization for SLAM - Handy obstacle detection for indoor/outdoor navigation - Easy integration with TTL UART, SDKs, and plugins - Environmental modeling and data collection for smart devices
