VXB
25mm Bearing HCFL205 2 Bolts Flanged Cast Housing Mounted Bearing with Eccentric Collar
$46.99
SKU: HCFL205
UPC: 00193019200117
UPC: 00193019200117
Item: HCFL205
Type: Flanged Mounted Bearing with Eccentric Collar
Bolt Size: M10
Basic Load (Cr): 14,000 N
Basic Load (Cor): 7,850 N
Type: Flanged Mounted Bearing with Eccentric Collar
Bolt Size: M10
Basic Load (Cr): 14,000 N
Basic Load (Cor): 7,850 N
| 25mm Mounted Bearing HCFL205 with Eccentric Collar One Bearing |
25mm Mounted Bearing with eccentric collar HCFL205. The inner diameter is 25mm.
|

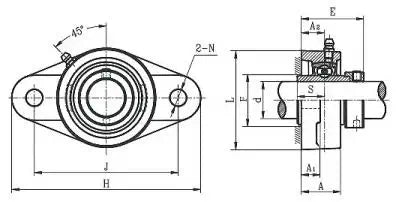

| Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | N | A | A1 | A2 | E | L | S | ||
| 25mm | 130 | 99 | 16 | 27 | 13 | 17.5 | 44.4 | 68 | 16 | ||
