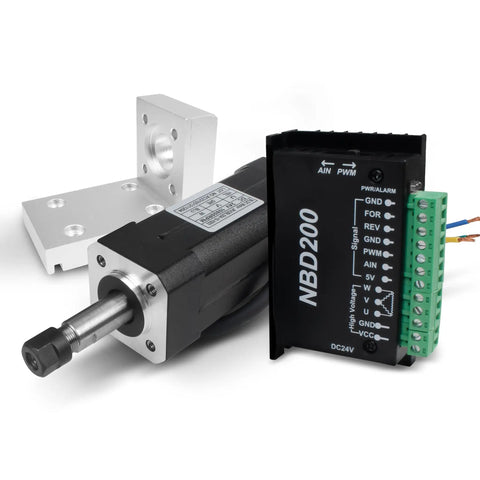

24V DC Brushless Spindle Motor 10800 RPM 104W Air Cooled ER8 Spindle With BLDC Driver Controller 5A Spindle Motor Mount Bracket Built For CNC Router Milling Machine

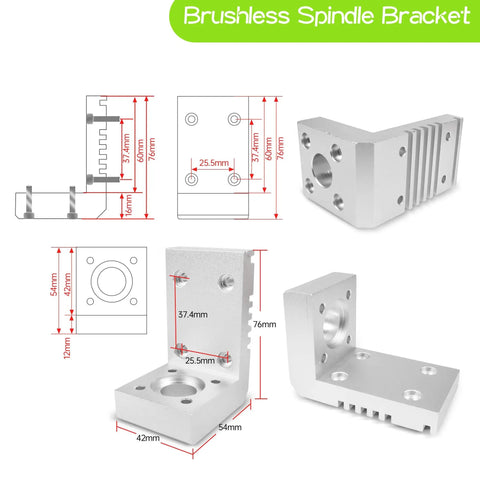

✔️ 104W spindle, 10800 rpm, ER8, 24V, BLDC driver; bracket included
This compact spindle motor is designed for CNC routers and milling machines, delivering high speed and clean power with low noise. It uses an ER8 collet and a 24V BLDC driver for precise control in hobbyist and light industrial setups.

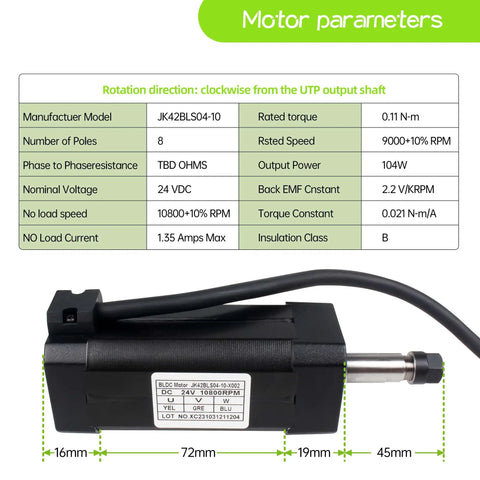

✅ 104W output, 24V DC, max load current 1.35A, max speed 10800 rpm, rated speed 9000 rpm

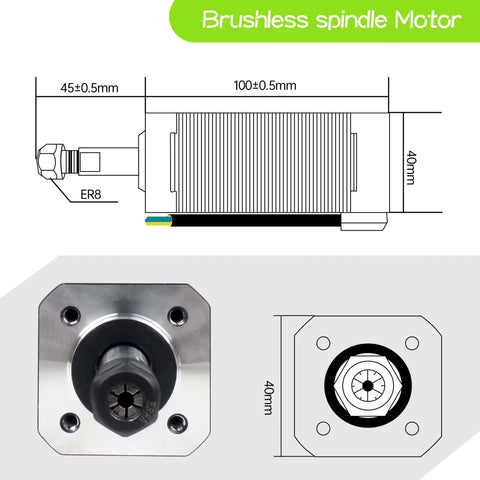

✅ ER8 collet compatibility for standard tooling
✅ Back EMF constant 2.2V/K rpm; torque constant 0.021 N m per A; rated torque 0.11 N m
✅ Phase-to-phase resistance 0.12 Ohm

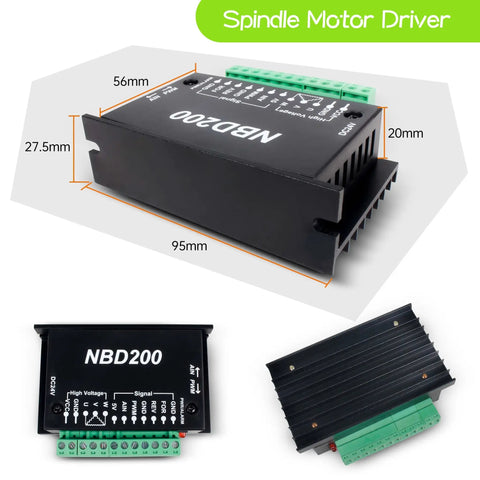

✅ CW/CCW control; 0-5V analog and PWM speed control; 24V supply; min 5A
✅ Over-current protection; protects motor during overload
✅ Air-cooled design for low heat, low noise, smooth operation
💡 What is a 24V brushless spindle motor used for in CNC router milling? This handy device is designed to deliver high-speed, precise cuts with low maintenance across wood, plastic, and soft metals.
- Handy for quick, repeatable milling with ER8 tooling
- Low maintenance and quiet operation for long sessions
- Compatible with 24V BLDC drivers for easy upgrades
