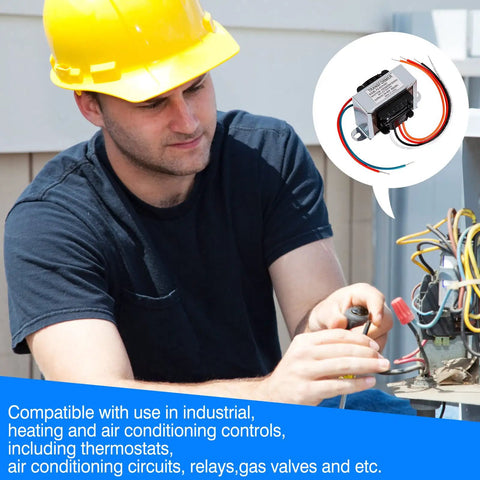

Technician using 24V 40VA Control Transformer For HVAC And Furnace With 24V Secondary Isolation Primary 120 208 240V Foot Mount Multi Tap For Relays Gas Valves And Control Circuits on unit

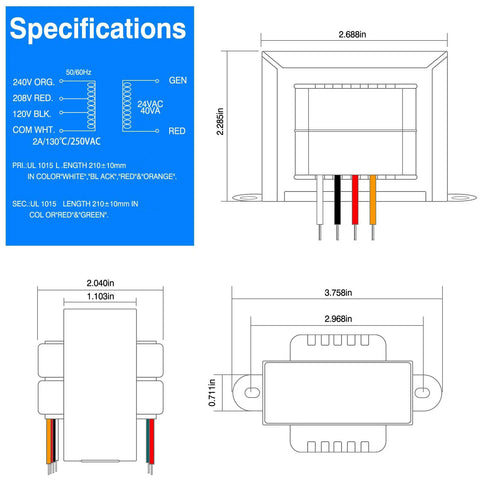

Technical diagram of 24V 40VA Control Transformer for HVAC and Furnace with 24V Secondary Isolation Primary 120 208 240V Foot Mount

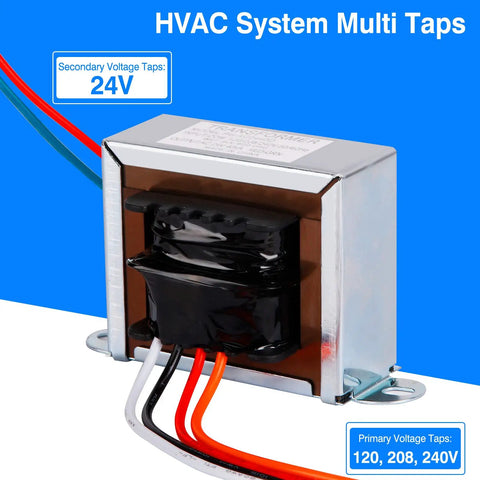

24V 40VA Control Transformer For HVAC And Furnace With 24V Secondary Isolation Primary 120 208 240V Foot Mount Multi Tap

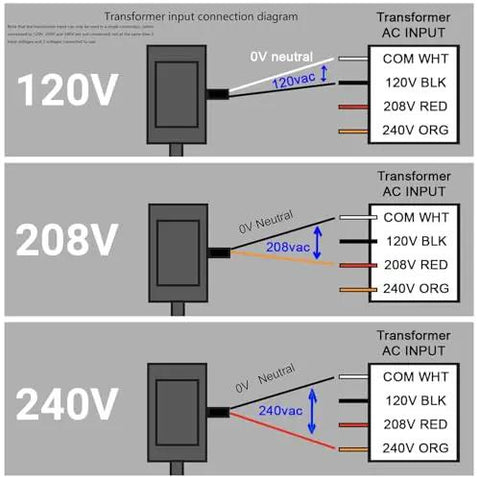

Wiring diagram for 24V 40VA Control Transformer For HVAC And Furnace With 24V Secondary Isolation Primary 120 208 240V Foot Mount Multi Tap
Specifications and dimensions of 24V 40VA Control Transformer For HVAC And Furnace With 24V Secondary Isolation Primary 120 208 240V Foot Mount Multi Tap For Relays Gas Valves And Control Circuits

24V 40VA Control Transformer For HVAC And Furnace With 24V Secondary Isolation Primary 120 208 240V Foot Mount Multi Tap For Relays Gas Valves And Control Circuits

$59.99 $88.00you save $28.01
SKU: VXB0B8Z2XV7V





24V 40VA HVAC control transformer, 1 unit pack
✔️ 24V output, 40 VA, 120/208/240 V input, foot mount, single unit

This 24V control transformer provides a safe, isolated 24-volt supply for relays, gas valves, and control circuits in HVAC and furnace systems. It’s designed for foot-mount installation with multi-tap primaries for flexible wiring in residential or commercial equipment.

✅ Primary voltage: 120/208/240 VAC
✅ Secondary voltage: 24 VAC
✅ Power rating: 40 VA
✅ Mounting: foot-mount, multi-tap primary
✅ Isolation: primary to secondary isolation
✅ No-load voltage: 26.6-27.5 VAC

💡 What is a 24V control transformer used for in HVAC and furnace control circuits? A handy guide to why this part matters in everyday setups. - Converts mains voltage to 24V for relays and valves - Provides isolation to protect control electronics - Supports a range of input voltages for different service configurations
