22226MKC3W33 Spherical Roller Bearing 130 x 230 x 64

SKU: 22226MK C3W33
UPC: 00193019142486

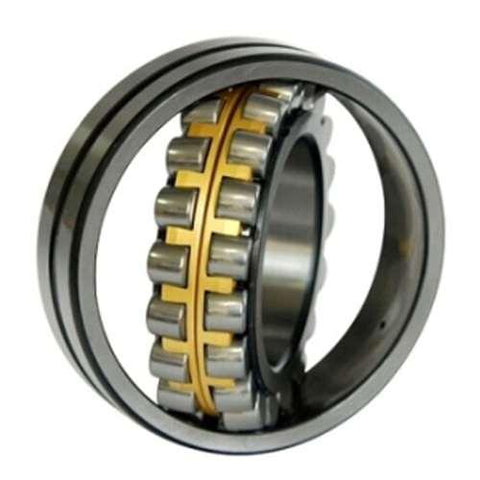

Spherical Roller Bearing
with Tapered Bore and Bronze Cage

22226MK C3W33 Spherical Roller Bearing, with Tapered Bore and Bronze Cage, the 22226MK C3W33 inner diameter is 130mm, the 22226MK C3W33 outer diameter is 230mm and the 22226MK C3W33 width is 64mm with a C3 clearance.

  • Item: 22226MK C3W33 Roller Bearing
  • Type: Spherical Roller Bearing with Tapered Bore
  • Cage: Bronze Cage with C3 clearance
  • Dimensions: 130mm x 230mm x 64mm/Metric
  • ID (inner diameter)/Bore: 130mm
  • OD (outer diameter): 230mm
  • Width/Height/thickness: 64mm
  • Size: 130 x 230 x 64 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 820,000 N
  • Static load rating Cor: 940 ,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,600 RPM
    • Oil Lubrication: 2,200 RPM

Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
