22208C3W33 Spherical Roller Bearing 40x80x23mm

No reviews
SKU: 22208C3W33
UPC: 00193019066126

Spherical Roller Bearing

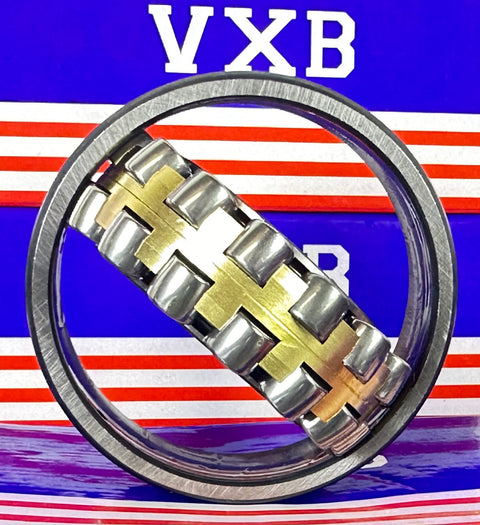

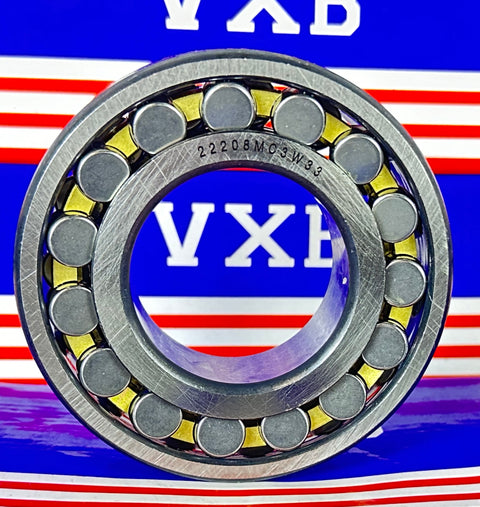

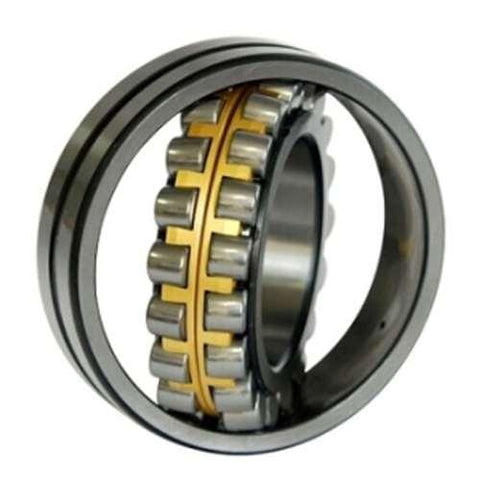

22208C3W33 Spherical Roller Bearing, with Bronze Cage, the 22208C3W33 inner diameter is 40mm, the 22208C3W33 outer diameter is 80mm and the 22208C3W33 width is 23mm with a C3 clearance.

  • Item: 22208C3W33 Roller Bearing
  • Type: Spherical Roller Bearing
  • Cage: Bronze Cage with C3 clearance
  • Dimensions: 40mm x 80mm x 23mm/Metric
  • ID (inner diameter)/Bore: 40mm
  • OD (outer diameter): 80mm
  • Width/Height/thickness: 23mm
  • Size: 40 x 80 x 23 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 126,000 N
  • Static load rating Cor: 102,000 N
  • Limiting Speed:
    • Grease Lubrication: 6,700 RPM
    • Oil Lubrication: 8,500 RPM

Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
