VXB
20mm Low noise Linear Motion Bushing Solid Polymer Lm20uu Bearing 20x32x45mm
$36.99
SKU: 20MM-POLYMER-LINEAR-BEARING
UPC: 00193019140932
UPC: 00193019140932
| 20mm Polymer Linear Ball Bushing Lm20uu Works with 20mm (0.7874") Shafts |
|

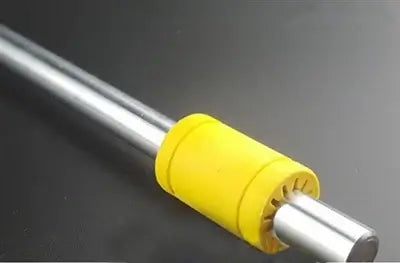

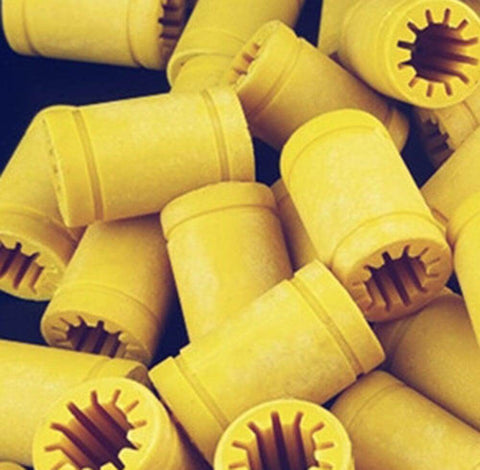

Polymer Linear Motion Ball Bushing Lm20uu works with a 20 mm (0.7874") Shafts, Size is 20mm x 32mm x 45mm, the inner Diameter is 20mm, the outer Diameter is 32mm and the Length is 45mm.Bearing is Full Plastic Bushing .
|

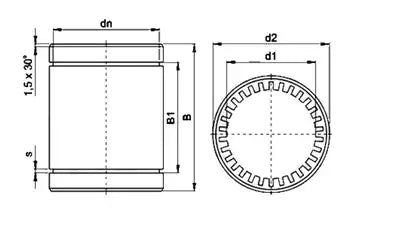

| d | d1 | B | B1 | s | dn |
| 20 | 32 | 45 | 31.2 | 1.60 | 29.6 |
