20mm Bearing UCP-204 + Pillow Block Cast Housing Mounted Bearing
UPC: 00193019055779
Type: Pillow Block Mounted Bearing
Bolt Size: 3/8" inch
Basic Load (Cr): 12,800 N
Basic Load (Cor): 6,650 N

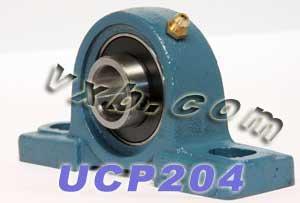

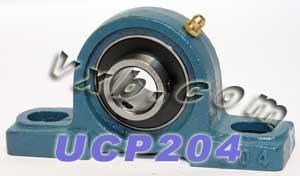

UCP-204 Pillow Block Bearing
✔️ 20mm Bore - Set Screw Lock, High-Center Height
The UCP-204 is a mounted pillow block bearing unit with a 20mm inner diameter and high-center height. Designed with set screws for shaft locking, it’s ideal for rotating applications in conveyors, machines, and agricultural equipment. Durable cast housing and pre-lubricated insert bearing included.
✅ Pack size: 1 bearing unit
✅ Shaft diameter: 20mm
✅ Mount type: Pillow block with set screw locking
✅ Center height: High-profile design
✅ Bearing number: UC204
✅ Housing number: P204
✅ Bolt size: 3/8 inch
✅ Dynamic load rating (Cr): 12,800 N
✅ Static load rating (Cor): 6,650 N

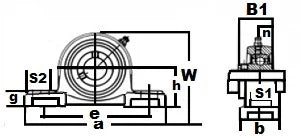

Dimensional Overview (mm):
h | a | e | b | S2 | S1 | g | W | B1 | n |
---|---|---|---|---|---|---|---|---|---|
33.34 | 127 | 95.25 | 38.1 | 19.05 | 12.7 | 12.7 | 64.3 | 31 | 18.3 |
💡 What is a UCP pillow block bearing used for?
UCP bearings support rotating shafts and provide stable, aligned motion in machinery and conveyors.
Common uses include:
-
Agricultural and food processing machinery
-
Conveyor belt systems
-
Packaging and textile machines
-
General industrial mechanical support
Strong, secure, and ready to mount - the UCP-204 is a reliable choice for stable shaft support in demanding setups!
