VXB
20mm 30 Rail Guideway System Flanged Slide Unit Linear Motion
$183.99
SKU: Kit19872
UPC: 00193019272114
UPC: 00193019272114
Diameter Shaft: 20mm
Rail length: 30" Inch
Dynamic load rating: 17.75 KN
Static load rating: 37.84 KN
High repeatability and smooth running performance
Rail length: 30" Inch
Dynamic load rating: 17.75 KN
Static load rating: 37.84 KN
High repeatability and smooth running performance
| We don't Offer International Shipping |
| 20mm Linear Guideway System 30" Inch length Rail |

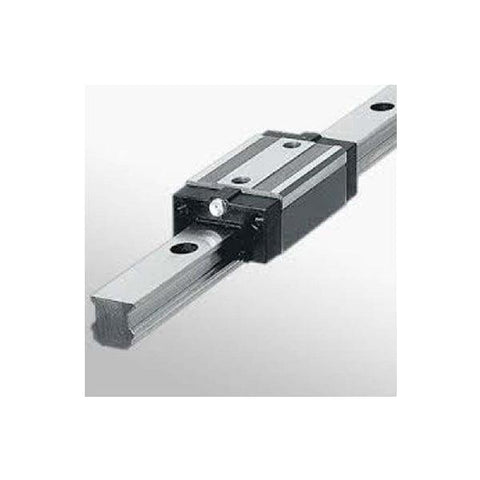

Complete linear guideway system with one Flanged Square block installed, Diameter Shaft is 20mm and Rail long is 30" Inch.
|

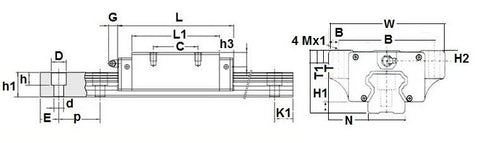

| Rail Name |
Rail Dimensions (mm) | Block Name |
Block Dimensions (mm) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | d | D | P | E | W | B | B1 | C | L1 | L | K1 | G | M | T | T1 | H2 | H3 | ||
| HYR20-4000 | 30 | 4.6 | 21.5 | 9.6 | 9.5 | 60 | 20 | HYW20CA | 63 | 53 | 5 | 40 | 50.5 | 77.5 | 10.25 | 12 | M6 | 8 | 10 | 6 | 7 |
