20mm 12' feet = 144" inches Rail Guideway System with Square Slide Unit
Title
$773.99
SKU: 20MM-12FEET-SQUARE-SHAFT
UPC: 00193019140840
UPC: 00193019140840
Diameter Shaft: 20mm
Rail length: 12' feet = 144" Inch
Block Dynamic load rating: 17.75 KN
Block Static load rating: 37.84 KN
High repeatability and smooth running performance
Rail length: 12' feet = 144" Inch
Block Dynamic load rating: 17.75 KN
Block Static load rating: 37.84 KN
High repeatability and smooth running performance
We don't Offer International Shipping |
20mm Linear Guideway System 12' feet = 144" inches long |

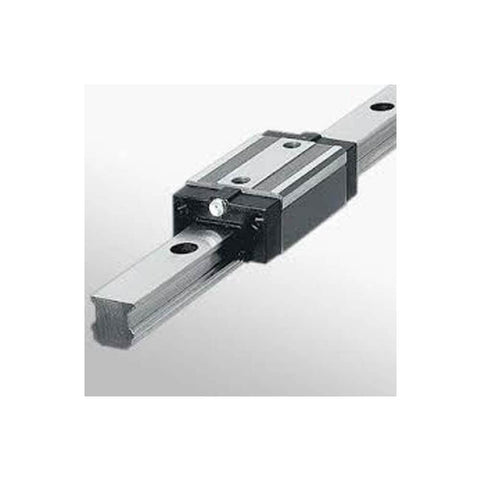

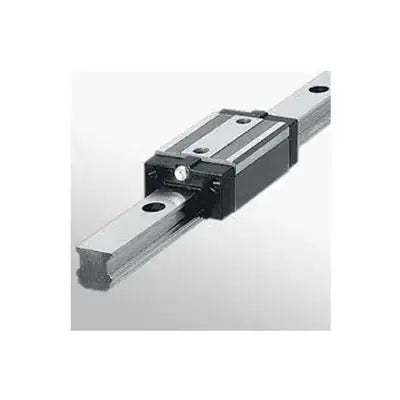

Complete linear guideway system with one Square block installed, Diameter Shaft is 20mm and Rail length is 144" Inch.
|

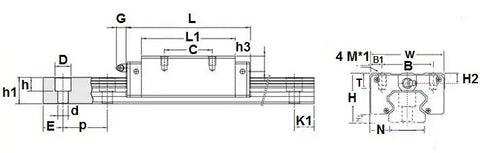

Rail Name |
Rail Dimensions (mm) | Block Name |
Block Dimensions (mm) | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
H | H1 | N | d | D | E | P | W | B | B1 | C | L1 | L | K1 | G | Mx1 | T | H2 | H3 | ||
HYR20-4000 | 60 | 4.6 | 12 | 6 | 9.5 | 20 | 60 | HYH20CA | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 |
