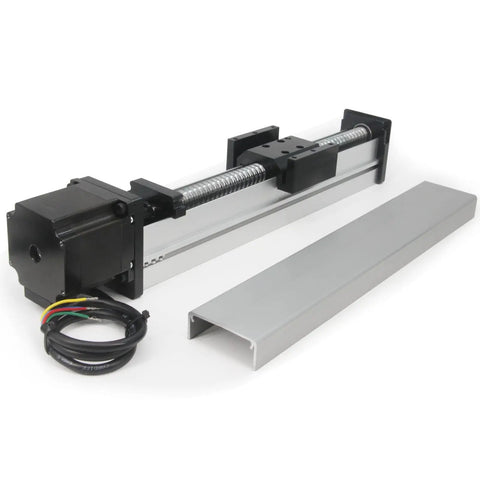

200mm Travel Fully Enclosed Linear Stage Actuator With SFU1605 Ball Screw And NEMA23 Stepper Motor For CNC Router X Y Z Axis High Precision Heavy Load Linear Slider With 0.03mm Repeatability, 100mm/s Speed And 5mm Lead

Precision 200mm Enclosed Linear Stage Actuator for CNC Routers
✔️ 200mm travel SFU1605 screw NEMA23 motor 0.03mm repeatability

This linear stage actuator gives controlled straight line motion in CNC routers and similar automation setups where heavy parts need exact positioning along one axis.

✅ 200mm effective travel with SFU1605 ball screw
✅ Horizontal load up to 30kg and vertical load up to 15kg
✅ NEMA23 stepper motor with 1.2Nm holding torque
✅ Repeat accuracy of 0.03mm and speeds to 100mm per second

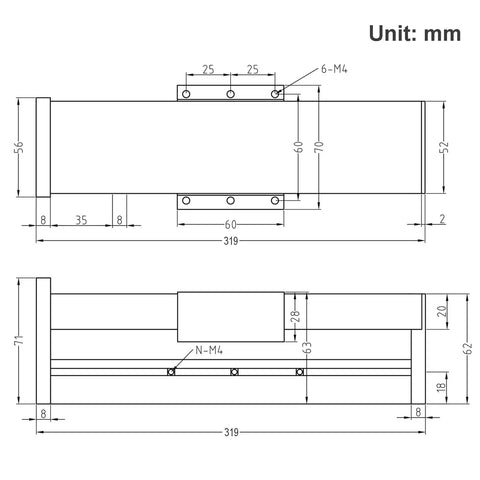

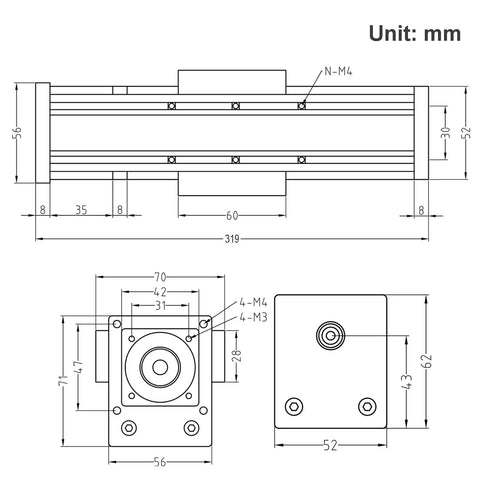

✅ Total length 375mm and 6 M4 holes for mounting workpieces

💡 What is a linear stage actuator used for in CNC applications? A linear stage actuator moves parts accurately along an axis. - Handy for building X Y Z axes on routers and milling machines - Handles heavy loads while keeping motion smooth and controlled - Works well with ball screws for reliable 5mm lead travel per turn - Gives shops a simple way to add precise automated movement

✝️
