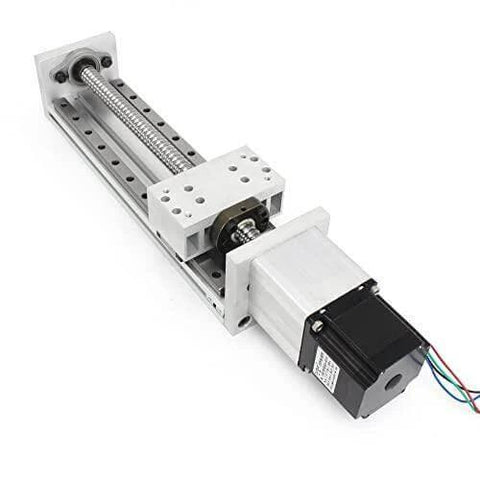

200mm Stroke CNC Linear Stage Motion Actuator with SFU1605 Ballscrew

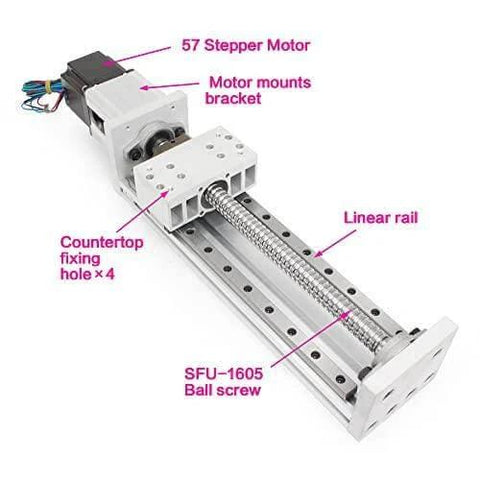

✔️ Aluminum Alloy X Y Z Axis Linear Slide with 57 Stepper Motor
This CNC linear stage motion actuator is designed for accurate linear movement in CNC machines, automation rigs, laser platforms, and compact motion control builds. The aluminum alloy frame paired with a ballscrew drive delivers smooth travel, steady speed, and repeatable positioning for X, Y, or Z axis use.
✅ Pack size includes 1 complete linear stage with 57 stepper motor
✅ Effective stroke length of 200 mm
✅ SFU1605 ballscrew with 16 mm diameter and 5 mm lead
✅ Positioning accuracy up to 0.03 mm
✅ High-speed, smooth, and quiet operation
✅ Aluminum alloy construction for durability and wear resistance
✅ Horizontally loadable up to 80 kg
✅ Vertical load capacity up to 20 kg
✅ Standard 57 stepper motor with 1.8 degree step angle
✅ Motor rated at 2.8A with 1.26 Nm holding torque

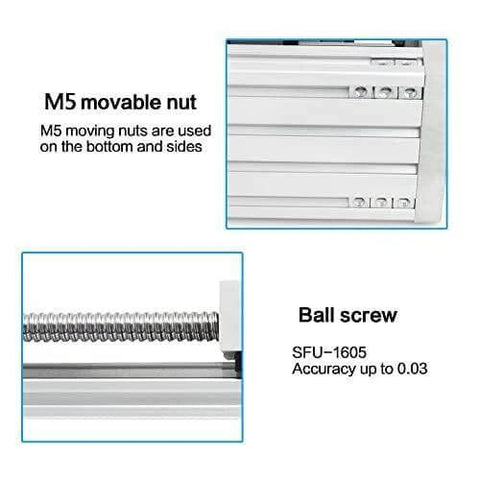

✅ M5 movable nuts on sides and bottom for flexible mounting options

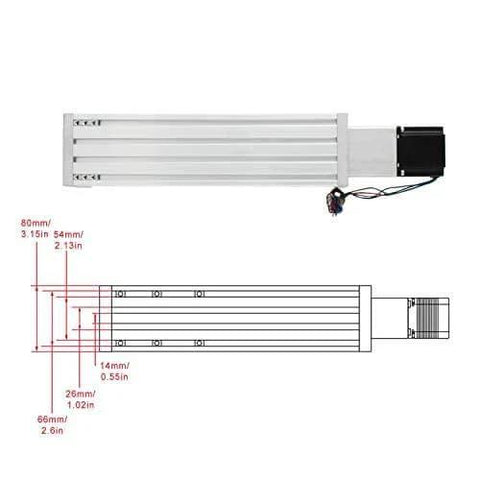

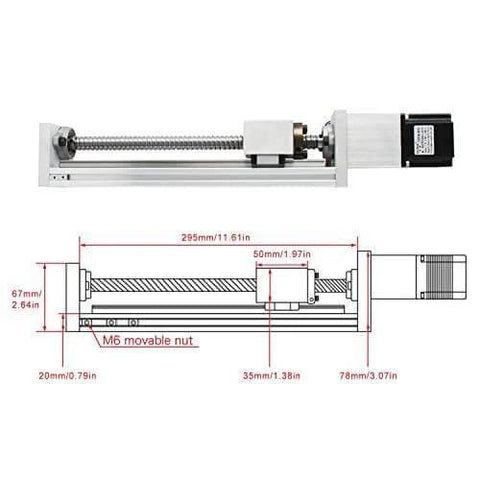

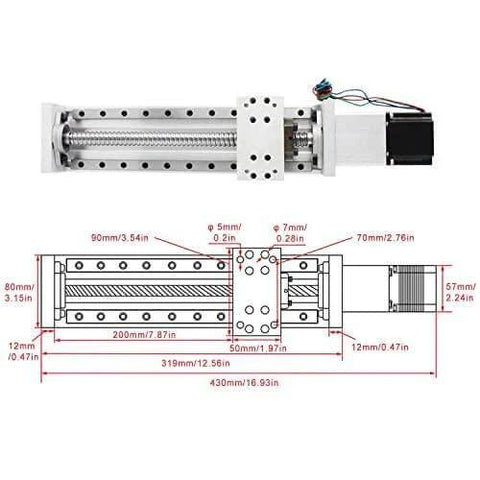

Dimensions and Load Specifications
Effective Stroke 200 mm
Stage Width 80 mm
Ballscrew Diameter 16 mm
Ballscrew Lead 5 mm
Horizontal Load Capacity 80 kg
Vertical Load Capacity 20 kg
Total Length with Motor 430 mm
Base Plate Length 319 mm
Drive and Motor Details
Motor Type 57 stepper motor
Step Angle 1.8 degree
Rated Current 2.8 A
Holding Torque 1.26 Nm
Ballscrew Type SFU1605
💡 What makes an SFU1605 ballscrew linear stage a solid choice for CNC motion control?
SFU1605 ballscrew linear stages are used when smooth motion, tight accuracy, and repeatable positioning are needed in compact CNC and automation systems.
They convert rotary motor motion into precise linear travel
They minimize backlash compared to belt or basic lead screw drives
They handle steady loads with smooth and quiet operation

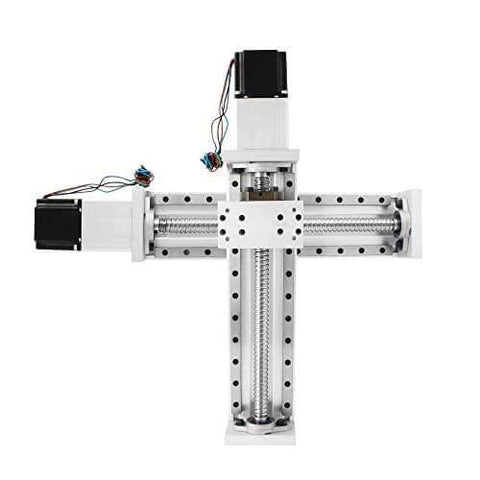

They support reliable X Y Z axis movement in space-conscious builds
This linear stage is a handy solution when you want quiet motion, dependable accuracy, and a compact footprint for CNC and automation projects that need consistent results.
