200mm 4080U Screw Slide Table Linear Actuator Kit Linear Module for 3D Printer for DIY/CNC Router Parts X Y Z Axis

200mm Screw Slide Table Linear Actuator Kit for DIY CNC Router - X/Y/Z Axis Motion, Pack Size: 1 pc
✔️ Handy, compact precision kit designed for tight builds and reliable linear motion

This 200mm screw slide table kit is a handy linear motion solution for DIY CNC routers, 3D printers, laser cutters, and other compact automation projects. It features a robust aluminum rail, a precise 8 mm lead screw, and a flexible coupling to simplify integration with common stepper motors. Use it to convert limited coordinate space into accurate, repeatable X, Y, or Z axis travel with a compact footprint. The included isolation columns help reduce vibration and improve stability during operation.

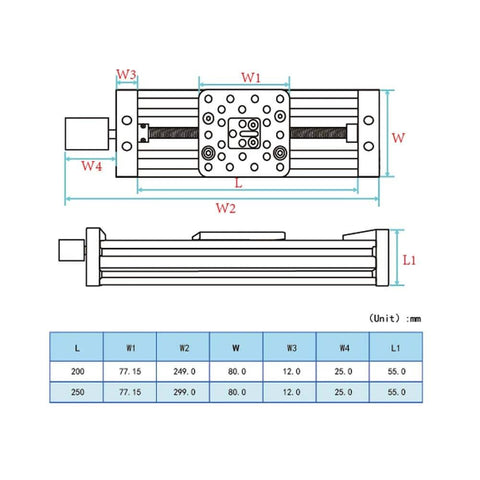

✅ Overall length: 249 mm
✅ Length of aluminum section: 200 mm
✅ Effective stroke: 122.85 mm
✅ Flexible coupling size: D20 L25-8 mm to 6.35 mm
✅ Lead: 8 mm (the lead screw moves 8 mm per turn)
✅ Screw length: 240 mm
✅ Materials: Aluminum Alloy
✅ Color: Black
✅ Weight: 941 g

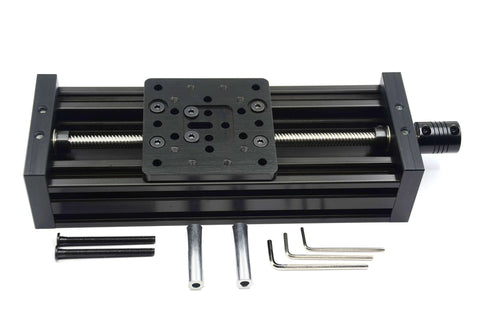

✅ Package contents: 1 pcs 200mm Screw Slide Table Kit with Flexible coupling; 2 pcs 40 mm aluminum isolation-columns; 2 pcs M5x55 mm screws; 3 pcs Allen wrenches

Overall length: 249 mm
Length of aluminum section: 200 mm
Effective stroke: 122.85 mm
Lead: 8 mm per turn
Screw length: 240 mm
Weight: 941 g

💡 What practical considerations should I keep in mind when integrating the 200mm Screw Slide Table Actuator Kit into a compact DIY CNC router or 3D printer, especially regarding mounting tolerance, alignment, and the 8 mm lead per turn with typical stepper motors?

Short answer: This kit delivers reliable, precise motion in a compact footprint when paired with proper mounting and control settings.

• The 8 mm lead per turn defines your achievable resolution based on your motor steps and microstepping settings.
• Ensure precise alignment and use the included isolation columns to minimize vibration for smoother travel.
• Match a flexible coupling to the motor shaft to absorb minor misalignment and prevent premature wear.
• Verify hole spacing and overall length (249 mm) to fit your frame without interference and provide enough clearance for mounting hardware.
