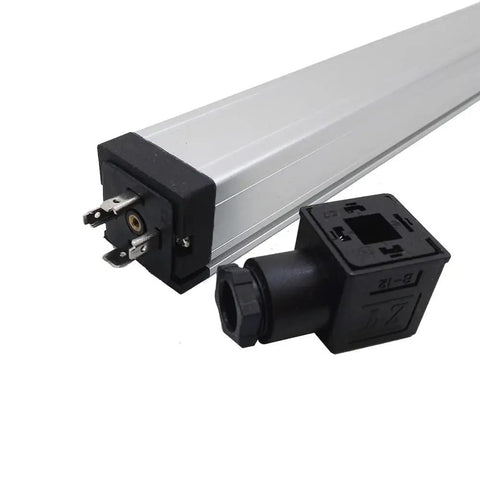

200mm 0-5K Ohm Linear Position Sensor With Rock-Solid Precision, 0.1% Full Scale, 0.01mm Repeatability, 10 m/s Maximum Speed, 0-36V Power, Pull Rod Electronic Ruler For Forming Machines, Automotive And Plastic Machinery Use

200mm Linear Position Sensor, 0-5K Ohm Output, Single Unit
✔️ Stroke 0-200mm, ±0.1% FS, 0-5KΩ output, 5-36V supply

This compact, high-precision linear position sensor provides accurate feedback over a 0 to 200 mm range, ideal for forming machines, automotive and plastic machinery, and measurement systems where reliable position data matters.

✅ Stroke: 0-200 mm; Repeatability: 0.01 mm; Linear accuracy: ±0.1% FS
✅ Output: 0-5KΩ; Supply: 5-36V; Temp range: -60°C to 150°C
✅ Max speed: 10 m/s; End buffering: 3.5 mm each side
✅ Universal joint included for easy mounting in tight spaces

💡 What is a practical use case for a linear position sensor in automation systems?

This handy device provides precise feedback for motion control and measurement. - In forming machines to monitor stroke position and ensure consistent part lengths - In automotive and plastic machinery to feed back axis position for control loops - In measurement systems that require wide operating temperature range and rugged reliability
