2 Pack PIR Motion Sensor Module Infrared Pyroelectric Detector For DIY Makers Projects Small Low Power IR Sensor With Auto And Manual Trigger 2.7 To 12V DC Compatible Mini Motion Detector

Compact 2-pack PIR motion sensor module for DIY projects
✔️ 2.7-12V DC, <0.1mA idle, 2s delay, 3-5m range

This compact PIR motion sensor module uses a pyroelectric infrared detector with digital signal processing to deliver reliable motion sensing and low power consumption. It detects body heat within a 100-degree cone and a 3-5 meter range, depending on the lens. The tiny 10 mm x 8 mm PCB footprint houses a small lens for compact integration.

✅ Operating voltage: DC 2.7-12V
✅ Static power consumption: <0.1mA
✅ Delay time: 2 seconds
✅ Block time: 2 seconds
✅ Trigger mode: repeatable
✅ Sensing range: ≤ 100 degrees cone angle, 3-5 meters
✅ Working temperature: -20 to +60 °C

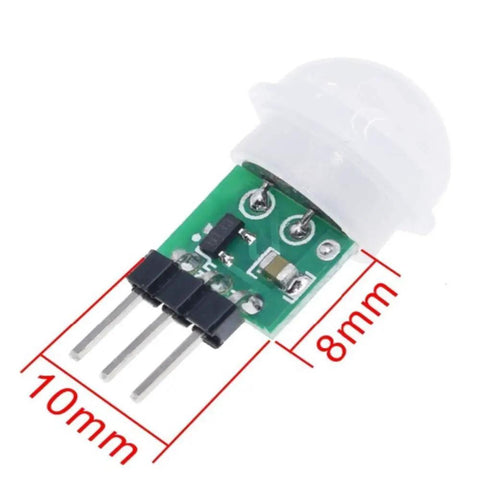

✅ PCB Dimensions: 10mm x 8mm
✅ Module lens: small lens

💡 What is a PIR motion sensor module used for?

It’s handy for adding motion-based control in small electronics and automation projects. - It's handy for automatic lighting, security, and energy-saving projects. - It runs on 2.7-12V DC and draws <0.1mA idle, ideal for battery-powered setups. - It uses repeatable trigger to keep the output high during motion within a 3-5 m range. ✝️
