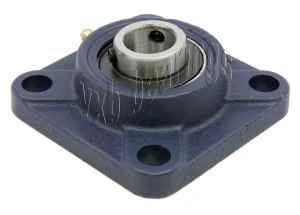

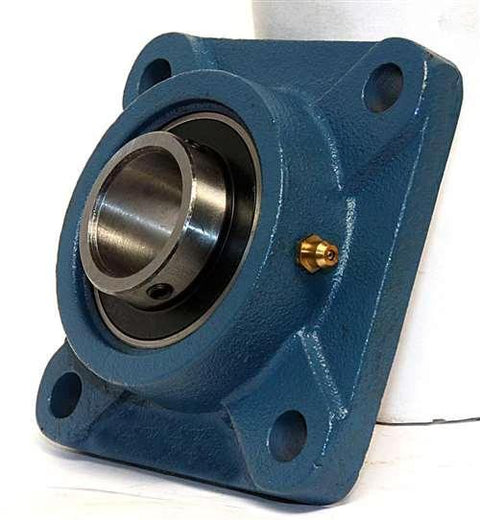

2" inch Bearing UCF211-32 - 4-Bolt Flanged Housing Mounted Bearing - Ball Bearing with a Flange

2-Inch UCF211-32 Four-Bolt Flange Bearing for Heavy Duty Use
✔️ 2 in ID, four-bolt flange, set-screw lock, single assembled unit

The UCF211-32 Four-Bolt Flange Bearing is a ready-to-mount, sealed ball bearing assembly with a cast housing and a pre-mounted insert bearing. This compact unit is designed for heavy loads and vibration resistance in conveyors, agricultural equipment, fans, and other rotating assemblies.

✅ Shaft diameter: 2 inch
✅ Mounting style: Four-bolt flange
✅ Locking type: Set screw
✅ Bearing number: UC211-32
✅ Housing number: F211
✅ Dynamic load rating: 43,400 N
✅ Static load rating: 29,400 N
✅ Bolt size: 5/8 inch
✅ Quantity: One assembled unit

Dimension Table (Inches and Millimeters)

Dimension	Inches	Millimeters
a	6-3/8"	162.0 mm
e	5-1/8"	130.2 mm
i	63/64"	25.0 mm
g	25/32"	19.8 mm
l	1-11/16"	42.9 mm
s	3/4"	19.1 mm
z	2-5/16"	58.7 mm
Bi	2-3/16"	55.6 mm
n	7/8"	22.2 mm

💡 What is a flange bearing used for in heavy-duty machinery?

This handy, reliable mounting keeps shafts aligned under heavy loads across industrial equipment.

- Used in conveyors, farm equipment, and fans to support rotating shafts - Helps maintain precise alignment and reduce vibration in demanding setups - Enables quick installation with a pre-mounted insert bearing
