2 In 1 Shelf Pin And Hinge Jig With Self Contained Clamping For Concealed Cabinet Hardware Go To Precision Woodworking Drilling Positioning Tool Hinge Hole Template And Shelf Hole Locator For DIY Cabinet Making And Quick Install

2-in-1 Shelf Pin and Hinge Jig for Cabinet Installations ✔️ Integrated clamping and 2-in-1 drilling for hinge and shelf holes

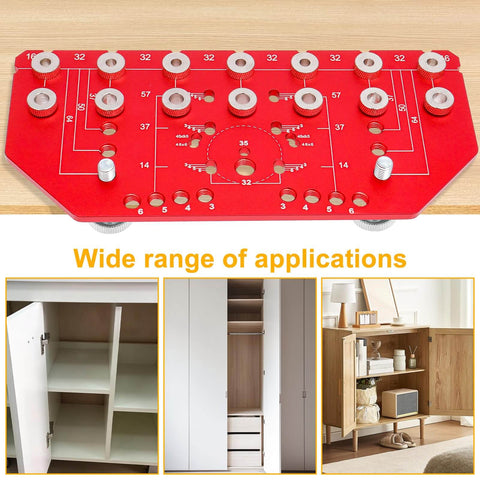

This compact tool combines a shelf pin hole locator and a hinge hole locator, built for quick cabinet installs. It’s ideal for DIY kitchen and bathroom cabinetry, office storage, and DIY furniture projects. With its self-contained clamp, you can drill hinge openings and shelf pin holes in one pass, saving time and boosting accuracy.

✅ 2 in 1 design combines shelf pin hole locator and hinge hole locator

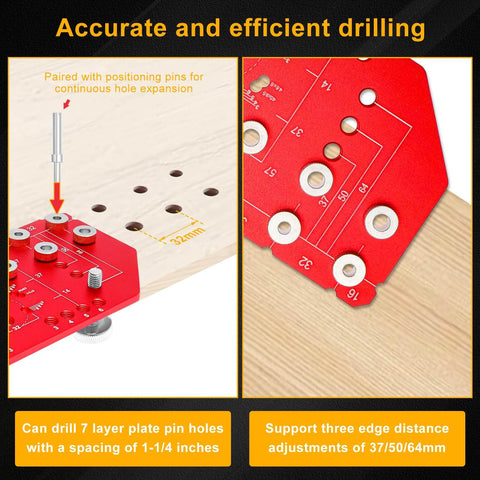

✅ Drills 7 shelf pin holes at 1-1/4 in (31.75 mm) spacing in one pass
✅ Edge distances adjustable to 37 mm, 50 mm, or 64 mm (1.46/1.97/2.52 in)

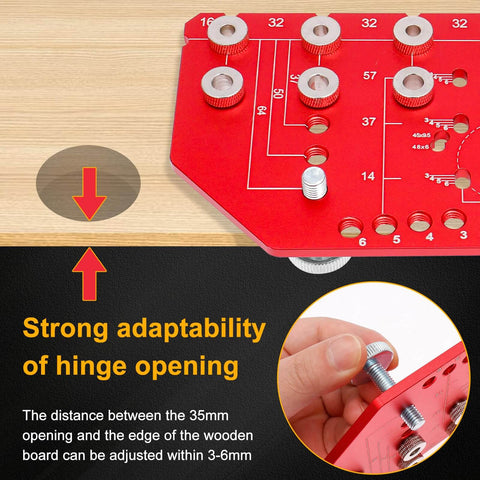

✅ 35 mm hinge hole option with adjustable edge offset 3, 4, 5, or 6 mm (0.12-0.24 in)

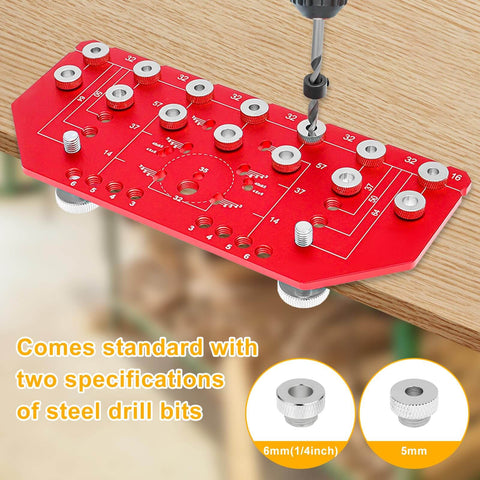

✅ Includes 1/4 in (6 mm) and 5 mm drill bits with limit ring
✅ Hardened aluminum alloy body with wear resistant finish

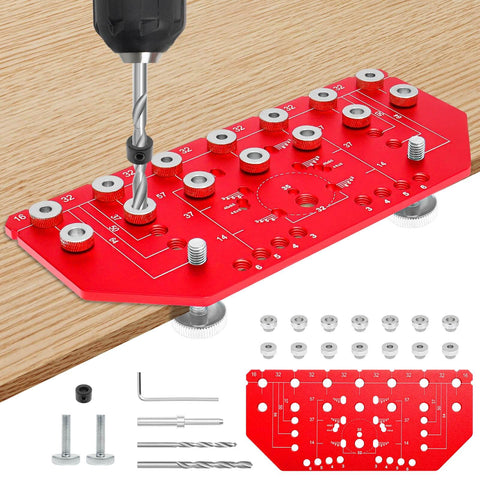

✅ Includes locating pin, stop ring, hex wrench, screws, and knurled nuts

💡 What is a shelf pin and hinge jig used for in cabinet building?

This handy tool helps align hinge and shelf hole positions quickly for clean, durable cabinet installs. - shelf pin spacing is 1-1/4 in (31.75 mm) with edge distances at 37/50/64 mm - works with standard concealed hinges (35 mm) and edge offsets 3-6 mm - includes 1/4 in and 5 mm drill bits, locating pin, and hex wrench - lightweight aluminum alloy body designed for regular shop use
