2 7 16 Inch Pillow Block Bearing UCP21239 Premium Self Aligning Mounted Bearing With Cast Iron Housing And Alloy Steel 52100 Built Tough For Agriculture Automotive Pumps Conveyors Fans Equipment Manufacturing
✔️ Self-aligning pillow block with 2-7/16 in bore and cast iron housing

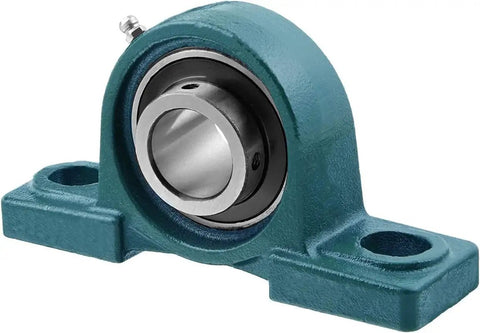

The UCP212-39 pillow block bearing is a self-aligning mounted unit designed for rugged industrial use. Crafted with a one-piece cast iron housing and an alloy steel 52100 bearing insert, it stands up to demanding applications in dry, non corrosive environments such as agriculture equipment, conveyors, pumps, fans, and manufacturing lines.
✅ Manufacturer Part Number: UCP212-39
✅ Bearing Insert Type: Radial Ball Bearing
✅ Insert Material: Alloy Steel 52100
✅ Shaft Locking Type: Set Screws
✅ Bore Diameter: 2-7/16 in
✅ Bore Diameter Tolerance: +/- 0.0009 in
✅ Mount Surface to Shaft Center Height: 2-47/64 in
✅ Mount Hole Center-to-Center Length: 7-15/64 in
✅ Mount Hole Center-to-Center Width: 7-15/64 in
✅ Base Height: 0.984 in
✅ Base Width: 2.755 in
✅ Mount Type: Bolt-Through
✅ Number of Mount Holes: 2
✅ Mounting Bolt Size: 5/8 in
✅ Housing Material: Cast Iron
✅ Housing Finish: Painted
✅ Overall Length: 9.488 in
✅ Overall Width: 2.563 in
✅ Overall Height: 5.433 in
✅ Static Radial Load Capacity: 7,396 lbf
✅ Dynamic Radial Load Capacity: 10,723 lbf
✅ Closure: Double Sealed
✅ Seal Type: Contact; Material: Synthetic Rubber
✅ Lubrication Openings: Grease Fitting
✅ Lubricant Material: Grease
✅ Maximum Temperature: 250 °F
✅ Minimum Temperature: -40 °F
✅ Resistance Properties: Corrosion Resistant; Rust Resistant; Wear Resistant
✅ Features: Anti-Rotation Device; Dual Heavy-Duty Slinger Type Contact Seals; Grease Fitting for Adding Lubricant; One-Piece Cast Iron Housing, Solid Base; Standard Duty Unit, Eccentric Locking Collar; Triple Lip Seals Available on Request; Wide Inner Ring Bearing
✅ Country of Origin: Made in China
The pillow block bearing is built to deliver reliable alignment and bearing support for machines that rely on steady shaft rotation, including agricultural equipment, assembly lines, pumps, and conveyors. Its cast iron housing and sealed design help protect the bearing in dry industrial settings.
💡 What is a pillow block bearing used for in industrial machinery? Pillow block bearings provide stable shaft support and easy mounting in dry, non corrosive environments. - agriculture equipment, conveyors, pumps, fans, manufacturing lines - reduces shaft misalignment and wear in tight spaces - grease fitting enables quick lubrication for longer life
✝️
