2 1/2 Inch Bearing UCF213-40 + Square Flanged Cast Housing Mounted Bearings

$126.99
SKU: Kit18485
UPC: 00193019263389
Item: UCF213-40 Ball Bearing
Type: Flange Mounted Bearing
Bolt Size: 5/8" inch
Basic Load Dynamic (Cr): 57,200 N
Basic Load Static (Cor): 40,100 N

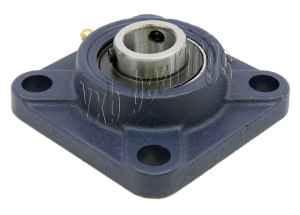

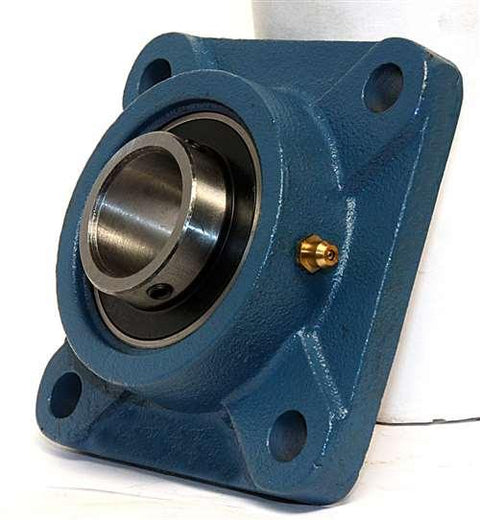

UCF213-40 Four Bolt Flange Unit
Set Screw Type
2 1/2" Inch Inner Diameter


UCF213-40 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 2 1/2" Inch.

  • Item: UCF213-40 Ball Bearing
  • Type: Flange Mounted Bearing
  • Bolt Size: 5/8" inch
  • Basic Load Dynamic (Cr): 57,200 N
  • Basic Load Static (Cor): 40,100 N
  • Bearing No: UC213-40
  • Housing No: F213
  • Quantity: One Bearing

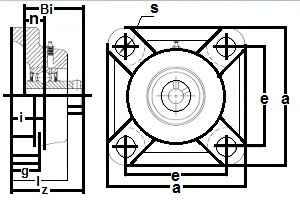

Dimensions (Inches)
a e i g l s z Bi n
7-3/8" 5-55/64" 1-3/16" 25/32" 1-31/32" 3/4" 2-3/4" 2-9/16" 1"
