1kg 5kg 10kg 20kg Load Cell And HX711 Combo Pack Kit With Aluminum Alloy Load Cell High Precision Weight Sensor And HX711 Amplifier Board For Fast And Precise Scale Projects For DIY Makers
This combo kit pairs a sturdy aluminum alloy load cell with a precision HX711 amplifier to deliver reliable weight sensing for DIY scales, robotics, and test benches. It’s commonly used with microcontrollers like Arduino and Raspberry Pi to build fast, accurate weight readings.

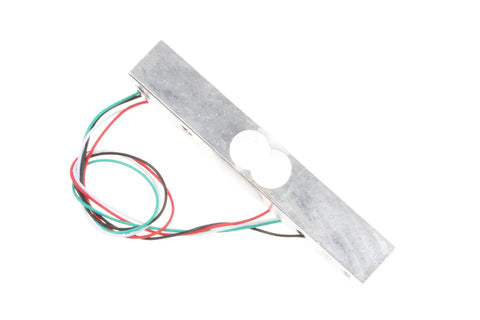

✅ Aluminum alloy load cell with strain gauges pre-attached and strain-relieved wires
✅ Measures 0-5 kg, 5 kg, 10 kg, or 20 kg ranges (selectable via hardware)
✅ 22 cm (8.5 in) wire leads pre-attached
✅ Dimensions: 13.5 mm high x 13.5 mm wide x 76 mm long
✅ 4 mounting holes, 15 mm spacing; two tapped M4, two tapped M5

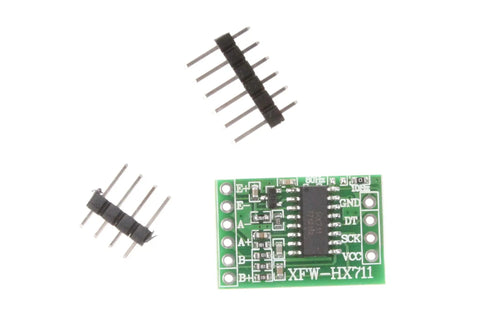

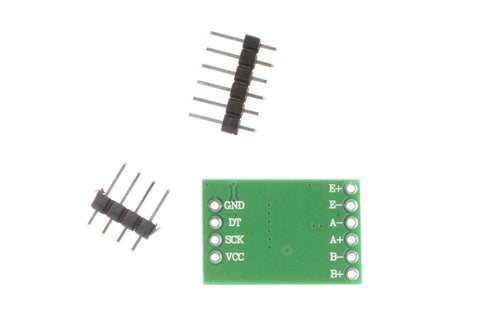

✅ HX711: 2.7-5 V operation; <1.5 mA current; selectable 10SPS or 80SPS
✅ Breakaway headers included for connection; soldering required

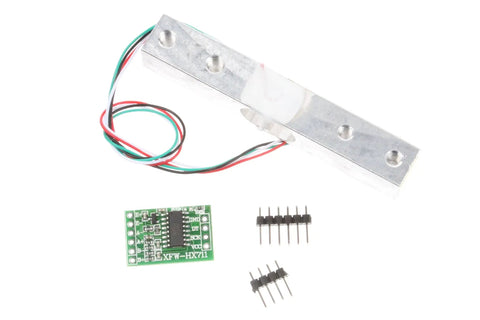

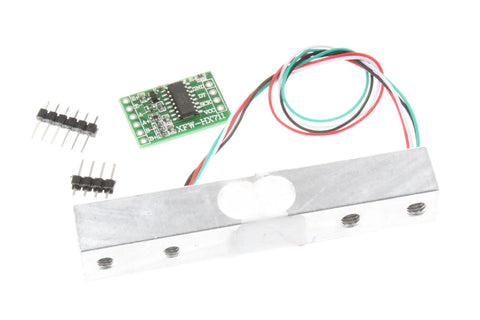

✅ Package includes: 1x Load Cell and HX711 Combo Pack Kit; Color: Sliver
💡 What is a load cell and HX711 combo kit used for in DIY scale projects? This handy kit makes it easy to build precise digital scales that work with common microcontrollers. - Applications include DIY scales and weight sensing for hobby projects - Works with 2.7-5V controllers and offers selectable data rates (10SPS or 80SPS) - Aluminum load cell plus HX711 provides fast, precise readings
✝️
