19 To 1 Planetary Gearbox Nema 8 Stepper Motor Geared Stepper Motor Tiny But Mighty With 0.095 Degree Step Angle, 4-Wire Bipolar, 0.6A Current, 10 Ohm Resistance, Compact High-Precision Motor For CNC Machines, Robotics And DIY Projects

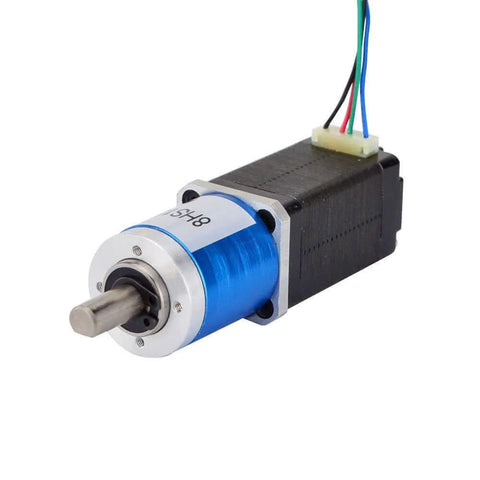

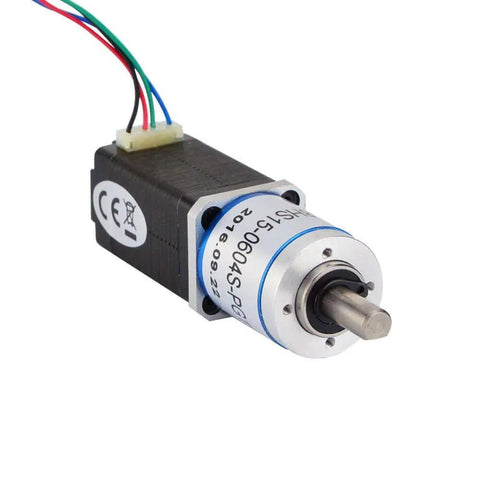

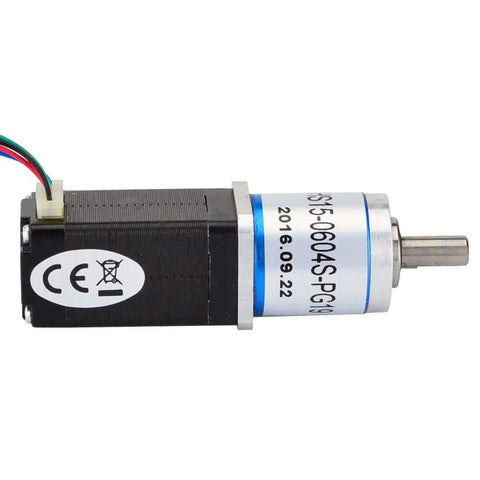

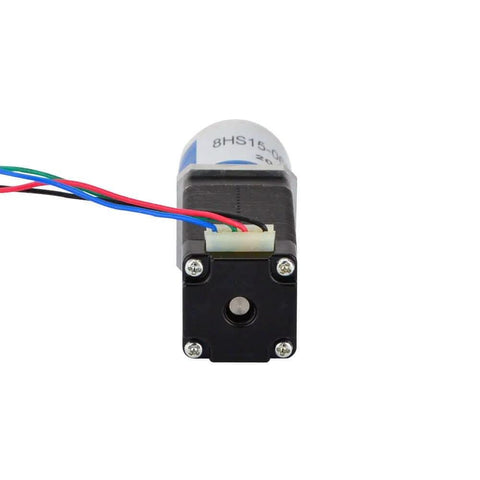

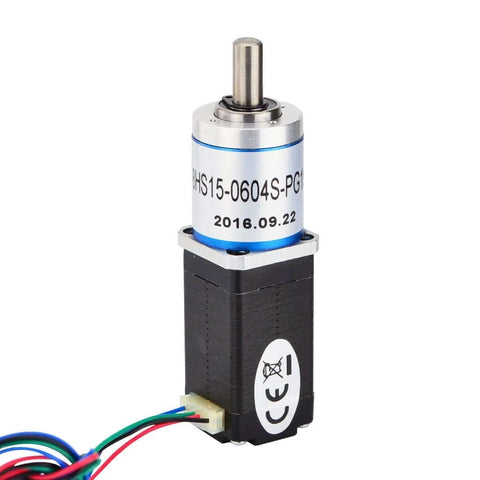

Compact 19:1 Planetary Gearbox NEMA 8 Geared Stepper Motor
✔️ 0.095° step, 19:1 gearbox, 61.56 Ncm torque, 0.6A rated single unit

This tiny NEMA 8 geared stepper motor comes with a built-in 19:1 planetary gearbox, delivering high torque in a compact form. Ideal for small CNC axes, robotics projects, and DIY precision setups where space is tight.

✅ Step angle: 0.095 deg, 4-wire bipolar configuration
✅ Gearbox: planetary, 19:1 ratio, efficiency 81%, backlash <= 1 deg
✅ Holding torque: 61.56 Ncm; max permissible torque 0.5 Nm (70.8 oz-in)
✅ Rated current: 0.6 A per phase; coil resistance 10 Ω
✅ Shaft: 6 mm diameter, 15 mm length, D-cut 9 mm
✅ Lead length: 300 mm (11.81 in); 4 leads (Black, Green, Red, Blue)

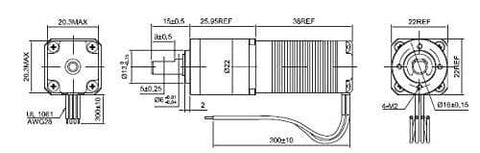

✅ Frame: 22x22 mm (0.87x0.87 in); motor length 38 mm (1.50 in); gearbox length 29.95 mm (1.18 in)
✅ Weight: 130 g

💡 What is a small geared motor with planetary gearbox used for in precision systems? This handy setup helps in narrow spaces where precise motion matters. - Precise positioning in compact CNC axes and micro-robotics - High torque at low speeds for micro actuators - Easy compatibility with common CNC controllers and drivers - Low backlash for repeatable results
