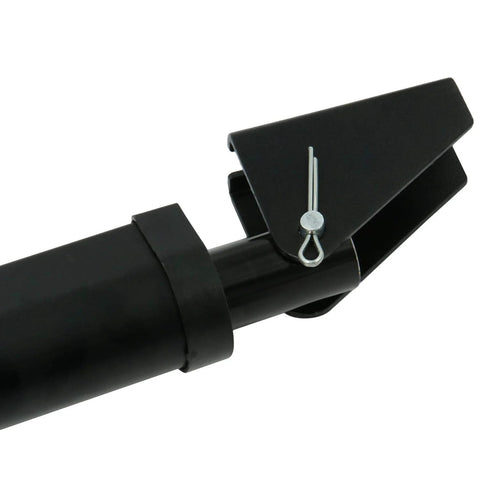

18 Inch Stroke Linear Actuator With Mounting Bracket For Recliners TV Tables Massage Beds And Electric Sofas Supplying 225 Lbs Load Capacity At 12V DC With 0.39 Inch Per Second Travel For Indoor And Outdoor Use Black

1x 18-Inch Stroke Linear Actuator with Mounting Brackets
✔️ 225 lb load, 12V DC, 0.39 in/s travel, IP54 rated outdoor

This 18-inch stroke linear actuator is a rugged, 12V DC device built from aluminum alloy for strength and light weight. It is designed to lift, tilt, and adjust furniture, medical devices, and equipment. Common uses include recliners, TV lift tables, massage beds, lifting tables, and outdoor furniture. IP54-rated protection makes it suitable for indoor and outdoor installations, and the built-in limit switch ensures safe, automatic stopping at end positions.

✅ Stroke length: 450 mm (18 in)
✅ Retracted length: 555 mm (21.9 in)
✅ Extended length: 1005 mm (39.6 in)
✅ Travel speed: 10 mm/s (0.39 in/s)
✅ Max load: 900 N (225 lb)
✅ Voltage: DC 12 V, current up to 3 A
✅ Built-in limit switch, IP54 rated
✅ Duty cycle: 25%
✅ Operating temp: -20°C to 65°C
✅ Noise: less than 50 dB

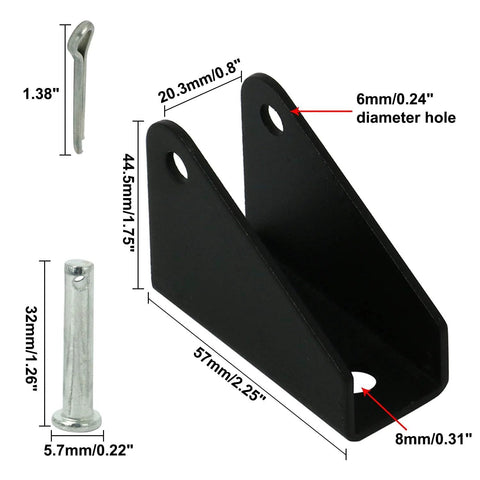

✅ Includes mounting brackets: 2 mounting brackets and 1 screw set

💡 What is a 12V DC linear actuator used for in furniture and equipment? Handy for adding motion to adjustable surfaces.

- handy for recliners, TV lifts, and adjustable tables - handy for massage beds and lifting surfaces - handy for retrofitting furniture with smooth, controlled movement - improves accessibility and user comfort with precise motion
