18 Channel DC12V CCTV Power Distribution Box With Independent PTC Fuses, LED Indicators, Lightning Protection, 100 To 240V AC Input, 12V 10A Output, Locking AC Plug, Ideal For Security Cameras And DVRs
✔️ 18-output 12V DC CCTV power supply with independent PTC fuses and LEDs
This 18-channel DC12V CCTV power distribution box centralizes power for security cameras, DVRs, PTZs, and related equipment. It accepts 100-240VAC input and provides 12VDC across 18 outputs, each protected by independent PTC fuses with LED indicators. The rugged metal enclosure includes a locking AC plug and lightning protection to safeguard connected devices.
✅ Input: AC 100-240V; Output: DC 12V +/-5%; Total outputs: 18; Total current: 10A

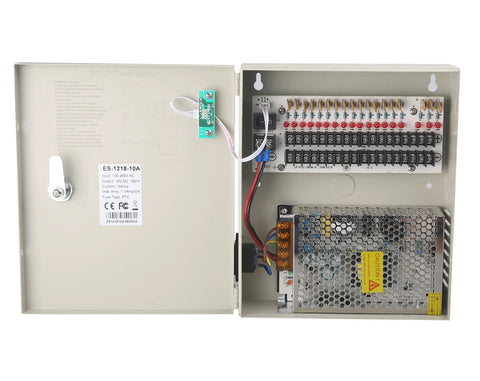

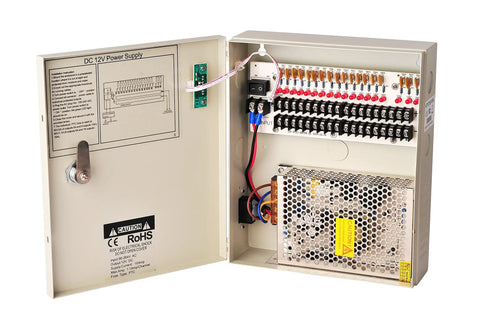

✅ Per-channel protection: independent PTC fuse per output with LED indicator
✅ Surge protection and lightning protection for connected devices

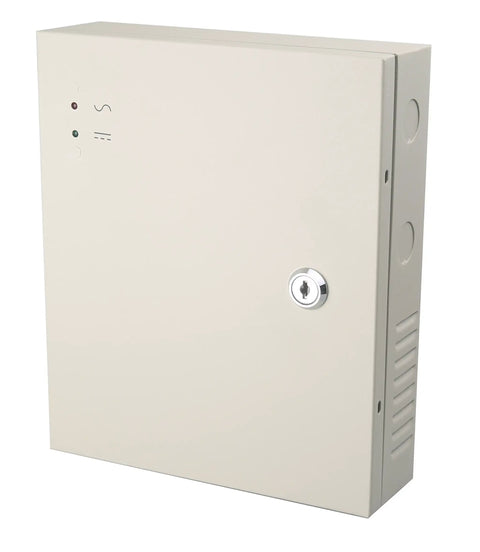

✅ Enclosure: metal housing, lockable AC plug; dimensions 250 x 215 x 94 mm (9.84 x 8.46 x 3.70 in); weight 2.3 kg
💡 What is a CCTV power distribution box used for in security installations?
This handy device centralizes power for cameras and DVRs, providing per-port protection and status indicators to simplify servicing.
- Centralizes 18 power outputs from a single 100-240V input to 12VDC for CCTV gear - Independent PTC fuses per channel help isolate faults quickly - LED indicators show each channel's status and health - Includes surge protection and a lockable AC plug for secure deployments
