1.75 Inch Bore 18 Inch Stroke Welded Hydraulic Cylinder With Cross Tube Ends For Loader Double Acting Piston At 3500 PSI Heavy Duty Hydraulic Ram Built For Rugged Workhorse Equipment

Heavy Duty 1.75 in Bore Welded Hydraulic Cylinder for Loader
✔️ Single unit: 1.75 in bore, 18 in stroke, 3500 PSI, cross-tube ends

This welded hydraulic cylinder is designed for front-end loader tasks, offering a durable 1.75 inch bore and cross tube ends for secure mounting. Built for heavy duty use at 3500 PSI, it's a reliable replacement part for rugged equipment.

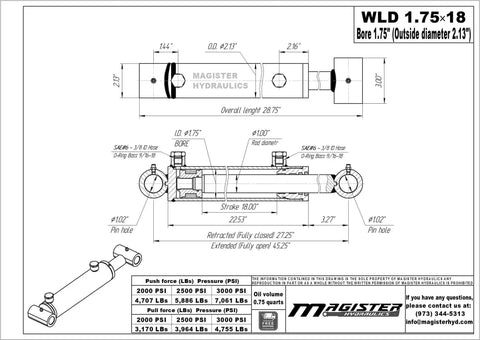

✅ Bore 1.75 in (44.45 mm) with OD 2.13 in (54.10 mm); Stroke 18 in (457.2 mm)

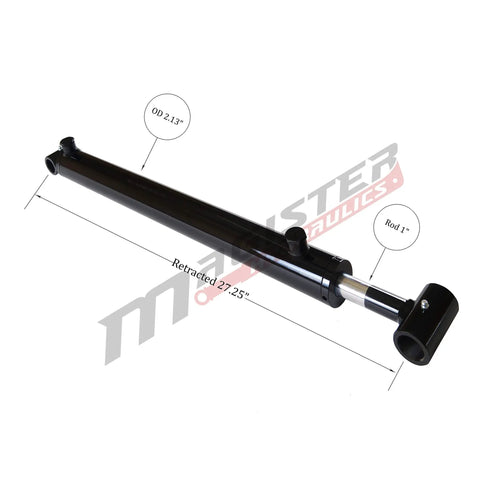

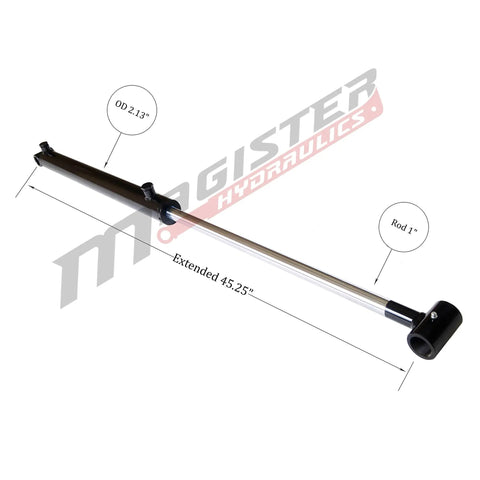

✅ Retracted 27.25 in (692.15 mm); Extended 45.25 in (1148.35 mm)

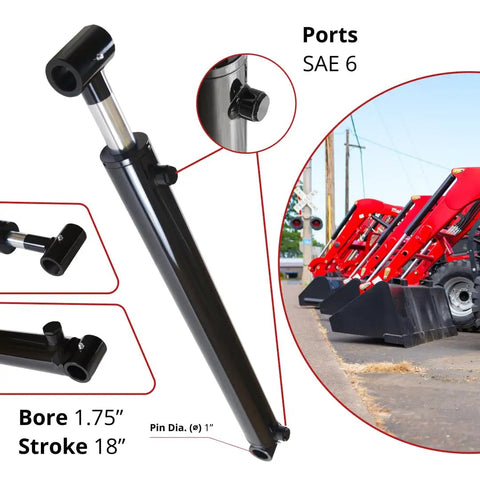

✅ Pin holes 1 in (25.4 mm); Ports SAE 6 (O-ring boss)
✅ Pressure 3500 PSI (241 bar); Load capacity 5150 LBs

💡 What is a heavy-duty loader hydraulic cylinder used for and why pick a welded cross tube version?

The handy unit is designed for loader tasks requiring robust actuation with secure mounting.

• handy for lift and tilt tasks under heavy loads
• cross tube ends ensure stable alignment and easier mounting
• built to seal with SAE 6 ports for compatible hoses
• European build quality backed by a 2-year warranty
