16 Inch Stroke Electric Linear Actuator, 400 lbs Force, IP66 Water Resistance - High Load Linear Actuator for Automation, Manufacturing, Automotive

16-Inch Stroke Electric Linear Actuator, 400 Lb Force, IP66 Water-Resistant High-Load Actuator for Automation, Manufacturing & Automotive (Pack Size: 1 Unit)
✔️ Pack Size: 1 Unit

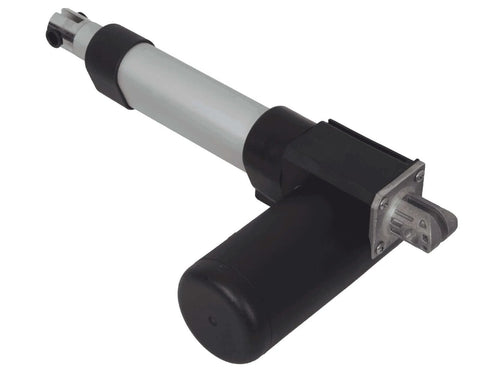

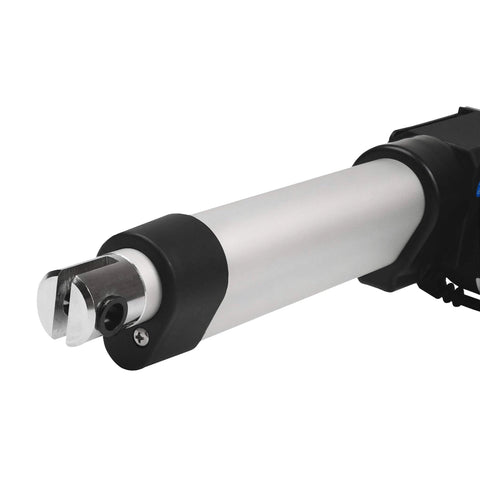

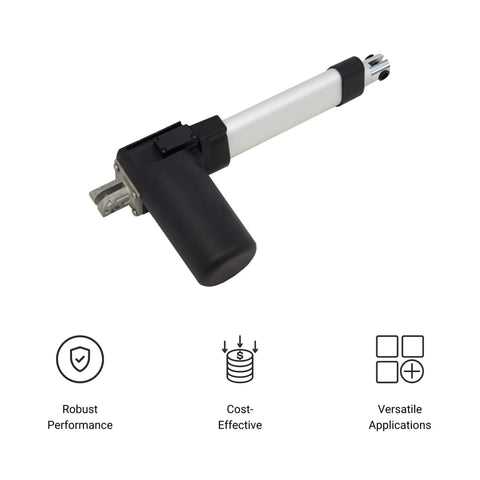

The PA-04 16-inch stroke electric linear actuator is built for heavy-duty motion control in harsh environments. It’s a handy choice for automation systems, manufacturing lines, automotive assemblies, outdoor doors, medical devices, and furniture adjustments where reliable straight-line actuation is needed and space or mounting options vary.

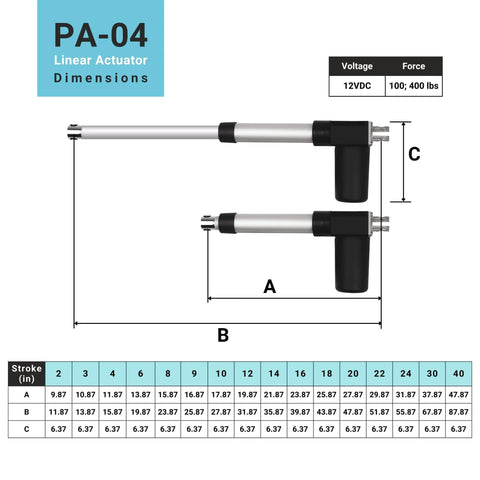

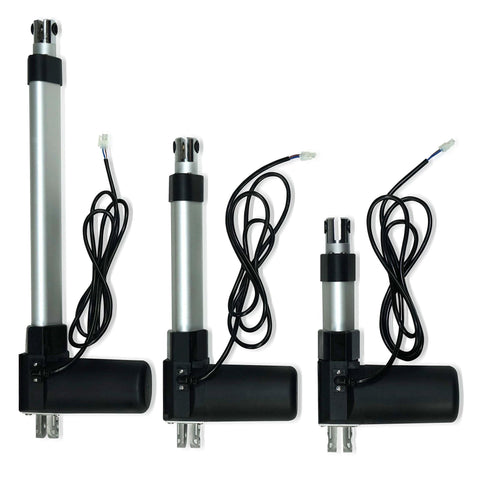

✅ Stroke options: 16 inches (406 mm) nominal, with an overall range from 1" to 40" (25.4 mm to 1016 mm)
✅ Force rating: up to 400 pounds (178 kg) peak, with lower options spanning 100-400 lbs
✅ Voltage: 12 VDC operation for straightforward power, control, and integration
✅ Ingress protection: IP66 rating for dust-tight performance and water resistance in outdoor or wash-down environments
✅ Connector: standard 2-Pin Molex Mini-Fit Jr for easy wiring into existing control systems
✅ Certification: ISO 9001:2015 quality management for durable, repeatable performance
✅ Applications: automotive, manufacturing, home automation, machinery, medical devices, furniture adjustment, material handling, and more

💡 What practical advantages does the PA-04 offer for outdoor automation and manufacturing setups, and how do its IP66 sealing, 12 VDC operation, and standard Molex connector influence installation, reliability, and long-term use across automotive, industrial, and medical contexts?

• Answer: It combines rugged outdoor-ready sealing with simple, reliable wiring and power delivery to support continuous operation in demanding environments.
• IP66 sealing reduces maintenance by protecting against dust and water exposure in exposed locations.
• 12 VDC operation simplifies wiring, minimizes power routing complexity, and improves compatibility with common control platforms.
• Standard Molex Mini-Fit Jr connectors accelerate integration into existing harnesses and reduce custom cabling needs.
• The wide stroke range (1"-40") plus the 16" nominal stroke fits a variety of layouts, enabling flexible mounting and precise positioning across automotive, manufacturing, and medical equipment.
