15mm Bearing HCFL202 2 Bolts Flanged Cast Housing Mounted Bearing with Eccentric Collar lock
$31.39
SKU: HCFL202
UPC: 00193019200063
UPC: 00193019200063
Item: HCFL202
Type: Flanged Mounted Bearing with eccentric collar
Bolt Size: M10
Basic Load Dynamic (Cr): 12,800 N
Basic Load Static (Cor): 6,650 N
Type: Flanged Mounted Bearing with eccentric collar
Bolt Size: M10
Basic Load Dynamic (Cr): 12,800 N
Basic Load Static (Cor): 6,650 N
| HCFL202 Flanged Mounted Bearing with Eccentric Collar lock 15mm Inner Diameter One Bearing |
15mm Mounted Bearing HCFL202 with eccentric collar lock. The inner diameter is 15mm.
|

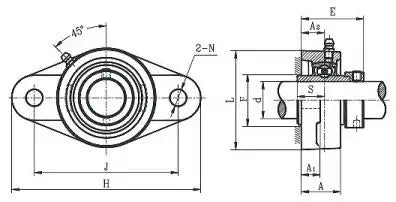

| Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | N | A | A1 | A2 | E | L | S | ||
| 15mm | 4 7/16" | 3 17/32" | 15/32" | 1 5/32" | 19/32" | 3/4" | 1 25/32" | 2 13/32" | 0.45" | ||
