VXB
15mm 7' feet = 84" inches Rail Guideway System Square Slide Unit Linear Motion
$400.99
SKU: 15MM-7FEET-SQUARE-SHAFT
UPC: 00193019136423
UPC: 00193019136423
Diameter Shaft: 15mm
Rail length: 7' feet = 84" inches
Block Dynamic Load Rating: 11.38 KN
Block Static load rating: 23.31 KN
High repeatability and smooth running performance
Rail length: 7' feet = 84" inches
Block Dynamic Load Rating: 11.38 KN
Block Static load rating: 23.31 KN
High repeatability and smooth running performance
| We don't Offer International Shipping |
| 15mm Linear Guideway System 7' feet = 84" inches length Rail |

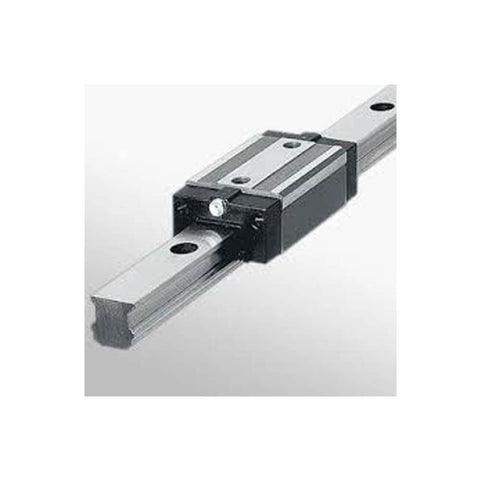

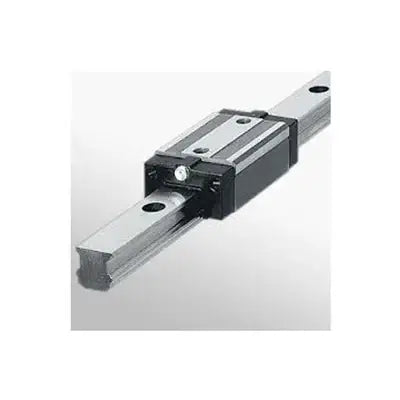

Complete linear guideway system with one Square block installed, Diameter Shaft is 15mm and Rail long is 84" Inch.
|

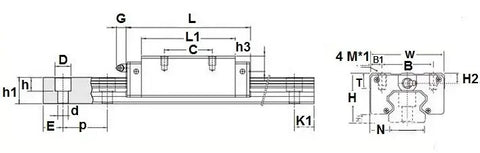

| Rail Name |
Rail Dimensions (mm) | Block Name |
Block Dimensions (mm) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | d | D | E | P | W | B | B1 | C | L1 | L | K1 | G | Mx1 | T | H2 | H3 | ||
| HYR15-4000 | 28 | 4.3 | 9.5 | 4.5 | 7.5 | 20 | 60 | HYH15CA | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 5.3 | M4x5 | 6 | 7.95 | 7.7 |
