1.5 Inch Tri Clamp Sanitary Butterfly Valve With Pneumatic Actuator Built Tough SS304 Stainless Clamp Connection Single Acting Return 0 To 90 Degrees Operating 5 To 7 Bar Air Supply Sterilizable 1 Inch Tube OD
✔️ 1.5 in tri-clamp, SS304, 1 in tube OD, pneumatic 0-90 degrees
This heavy duty sanitary butterfly valve uses a 1.5 inch tri-clamp connection, an SS304 body, and a 1 inch tube OD. It is pneumatically operated with a single-acting return and is designed for clean-in-place environments in food, beverage, pharmaceutical, and biotech lines.
✅ Valve material: SS304 stainless steel
✅ Connection: Clamp (Tri-Clamp 1.5 in)
✅ Tube OD: 1 in (25.4 mm)
✅ Tri-clamp size: fits 1.5 in diameter
✅ Operation: Pneumatic, single-acting with automatic return
✅ Rotation: 0-90 degrees
✅ Operating pressure: 5-7 bar (72-102 psi)
✅ Sterilizable up to 302°F (150°C) for CIP/SIP

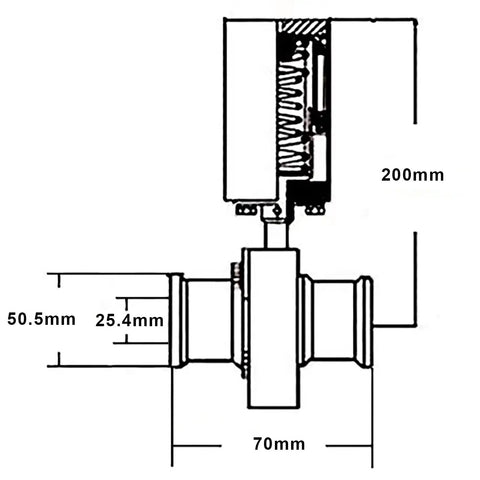

| Dimension | Value |
|---|---|
| Tri-clamp size | 1.5 in (38.1 mm) |
| Tube OD | 1 in (25.4 mm) |
| Rotation | 0-90 degrees |
| Operating pressure | 5-7 bar (72-102 psi) |
| Temperature range | -41°F to 140°F (-40°C to 60°C) |
| Sterilization temp | 302°F (150°C) |
💡 What is a sanitary butterfly valve with a pneumatic actuator used for in clean process lines? This handy device is designed for hygienic, easy-flow control in food, beverage, pharma, and biotech piping. - Handy for clean-in-place pipelines and sanitary processing - Great for on/off control and precise throttling in tight sanitary spaces - Built with SS304 clamp connections to minimize contamination risk - Designed to work with standard 5-7 bar air supply for reliable actuation
