12V Self Priming Diaphragm Water Pump, 1.3 LPM At 30 PSI, Food Grade Replacement For Bottom Loading Water Coolers, Water Dispensers, Ice Makers, Easy Install, Durable And Quiet

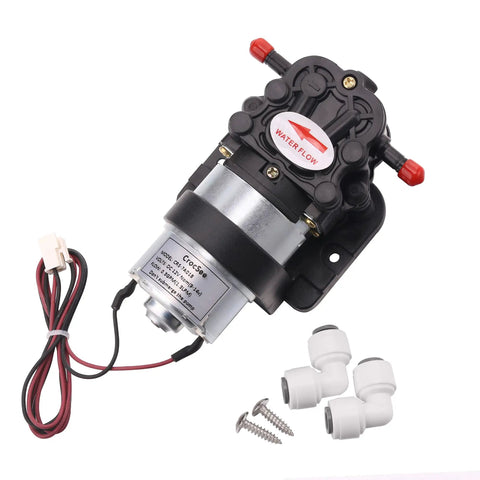

12V DC Self-Priming Diaphragm Water Pump for Fresh Water
✔️ Flow 1.3 LPM at 30 PSI, food-grade head, 1/4in ports

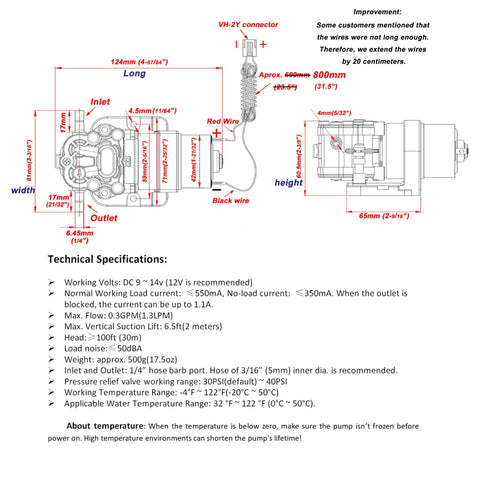

This compact, 12V DC diaphragm pump is designed for fresh water systems in common home appliances such as bottom-loading water coolers, water dispensers, ice makers, coffee machines, and small refrigerators. Approx. Size: 124mm x 81mm x 60.5mm (4.88" x 3.19" x 2.38").

✅ DC 9-14 V operation (12 V recommended)
✅ Normal load current up to 550 mA; no-load up to 350 mA; up to 1.1 A if outlet blocked
✅ Self-priming: vertical suction up to 6.5 ft (2 m); max flow 0.3 GPM (1.3 LPM)

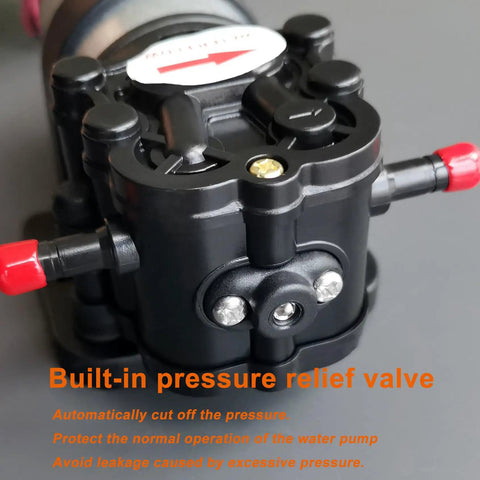

✅ Head up to 30 ft (10 m); pressure range 30-40 PSI

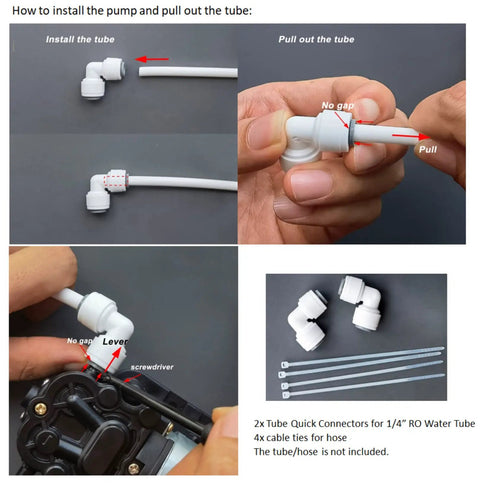

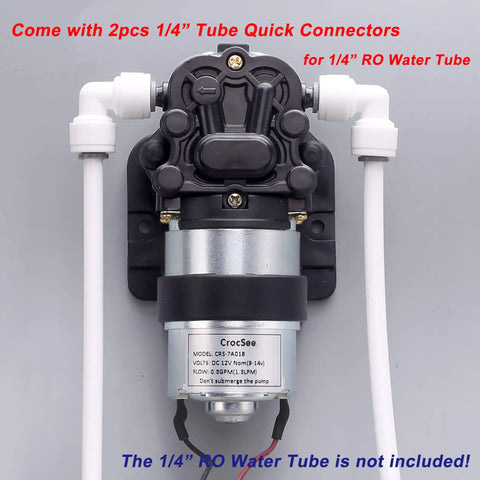

✅ Inlet/Outlet: 1/4 inch hose barb ports; compatible with 1/4 inch quick-connect tubing
✅ Food-grade pump head; low noise; suitable for fresh water use
✅ No built-in pressure switch; not for flammable or high-viscosity liquids

💡 What is a 12V DC self-priming diaphragm water pump used for? This handy device provides reliable, compact water movement for small appliances.

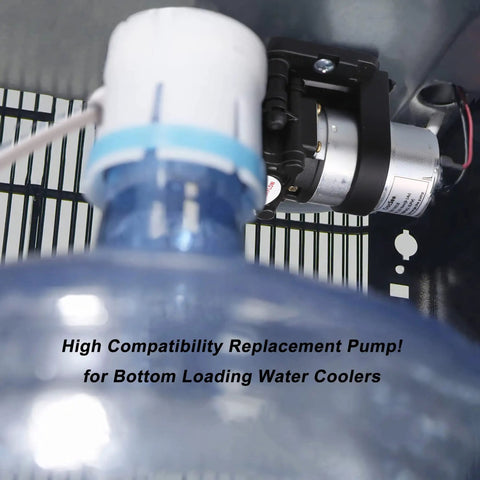

• Common applications include bottom-loading water coolers, water dispensers, ice makers, and coffee machines.
• Operates on DC power, 9-14 V (12 V recommended) with self-priming capability up to 2 m.

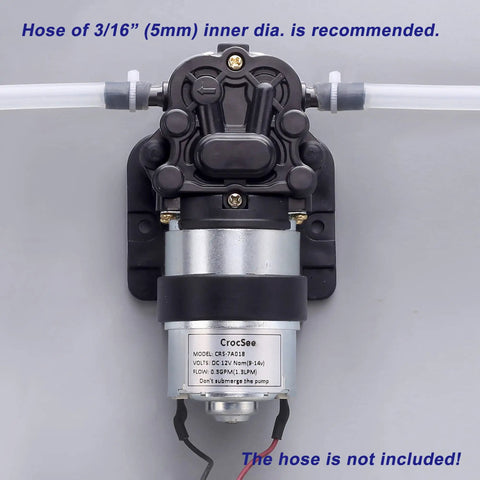

• Inlet/outlet use 1/4 inch hose barb ports or compatible 1/4 inch quick-connect tubing.
• Food-grade pump head ensures safer contact with drinking water.
