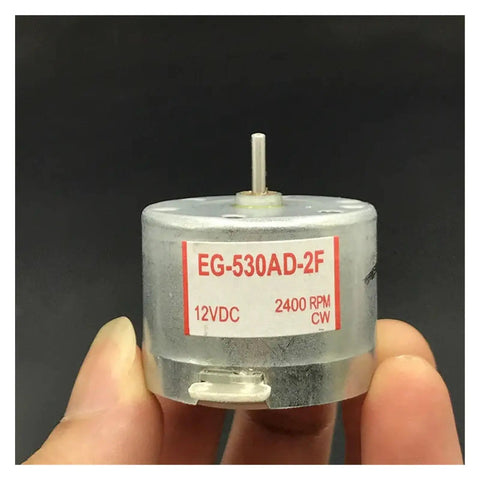

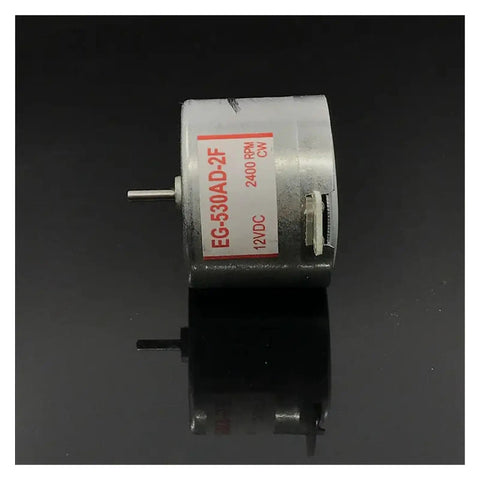

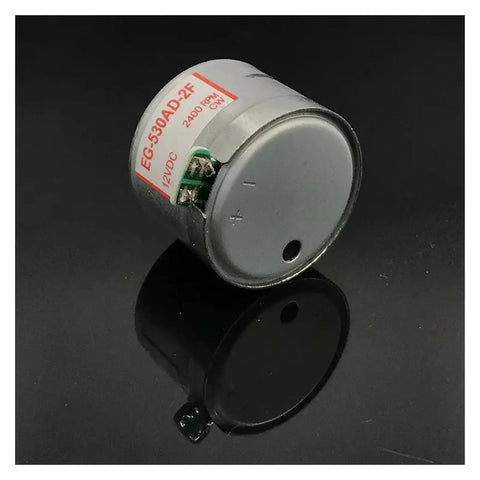

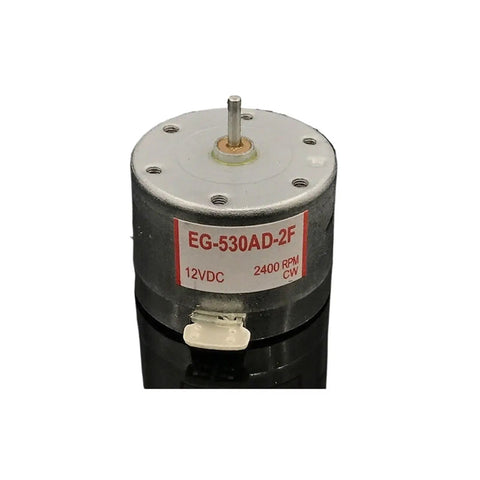

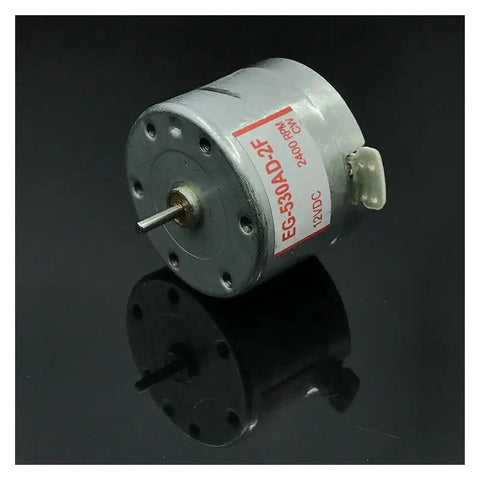

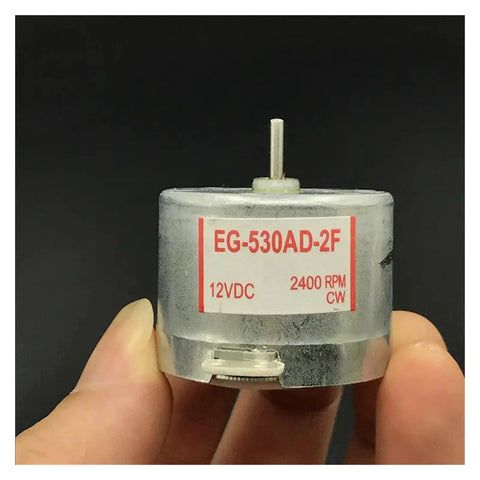

12V Micro DC Motor EG-530AD-2F CW For Cassette Deck Capstan Spindle Replacement, 2400RPM Tape Recorder Motor, Tiny Plug-And-Play Rebuild Part For Tape Players

12V DC Motor Replacement for Cassette Tape Capstan Spindle
✔️ 34mm diameter 25mm height 2mm shaft 2400 RPM 12V DC CW

This 12V micro DC motor works as a plug and play fix for capstan spindles inside cassette tape recorders and audio players.

✅ Motor diameter measures 34 MM
✅ Motor height measures 25 MM
✅ Output shaft diameter measures 2 MM
✅ Output shaft length measures about 10 MM
✅ Weight measures 60 g
✅ Rated voltage is DC 12 V
✅ No load current draws 12 mA
✅ Locked rotor current draws 600 mA
✅ Rotation direction is clockwise
✅ Speed range runs 2000 RPM to 3000 RPM

💡 What is a DC motor for cassette decks used for? This handy part keeps old tape machines running by driving the capstan spindle at a steady speed. - It fits tape recorder rebuilds where the original motor has worn out - The clockwise rotation matches most capstan setups in vintage audio gear - Low current draw makes it simple to wire into existing 12V circuits - Compact size lets it drop into tight deck compartments without mods
