12V Linear Actuator, 4" Actuator 14 mm/s High Speed Linear Actuator Waterproof 1000N/220lbs Stroke with Switch Controller
12V Linear Actuator, 4" Actuator 14 mm/s High Speed Linear Actuator Waterproof 1000N/220lbs Stroke applications
Wiring diagram for 12V Linear Actuator, 4" Actuator 14 mm/s High Speed Linear Actuator Waterproof 1000N/220lbs with switch controller
Product details of 12V Linear Actuator, 4" Actuator 14 mm/s High Speed Linear Actuator Waterproof 1000N/220lbs Stroke, with reverse polarity switch controller and aluminum alloy construction.
12V Linear Actuator, 4" Actuator 14 mm/s High Speed Linear Actuator installed, showing aluminum build and noise level

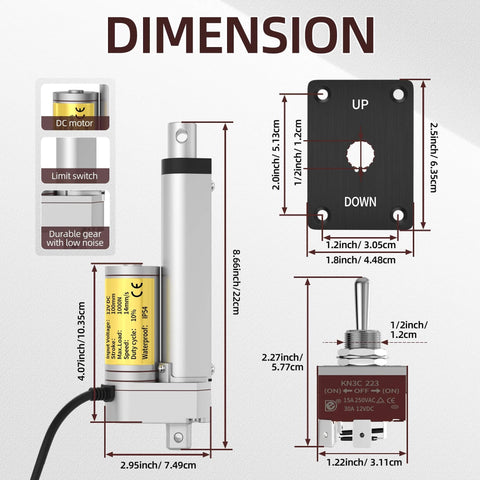

Image showing dimensions of the 12V Linear Actuator, 4" Actuator 14 mm/s High Speed with Waterproof 1000N/220lbs Stroke and reverse polarity switch

12V Linear Actuator 4 Inch Stroke High Speed 14 mm per Second 1000N 220 lb Waterproof Actuator with Reverse Polarity Switch

$65.00 $100.00you save $35.00
SKU: VXB0D728LNZ7
UPC: 00193019412565





4 Inch High Speed 12V Linear Actuator for Automation and Lifting
✔️ 1000N 220 lb waterproof linear motion actuator with reverse polarity switch

This single 12V linear actuator is made for fast push and pull movement in automation, furniture, and light lifting systems. Its compact stroke and quick travel speed make it a solid fit for projects that need smooth motion with simple DC control in indoor or outdoor settings.

✅ Pack size includes 1 linear actuator, mounting bracket, and reverse polarity switch
✅ Stroke length 4 in 100 mm
✅ Travel speed 0.55 in per second 14 mm per second
✅ Max push pull load 220 lb 1000 N
✅ Retracted length 8.2 in 205 mm
✅ Extended length 12.2 in 310 mm
✅ Operating voltage 12V DC
✅ Current draw about 4 amps
✅ Aluminum alloy housing for strength and long service life
✅ Built in limit switches prevent over travel
✅ Self locking design holds position when power is removed
✅ Noise level under 50 dB
✅ IP54 rated for dust and splash resistance

💡 Why use a high speed 12V linear actuator for compact motion control systems?
It delivers quick straight line movement with steady force using low voltage power.

  • Improves response time for small lift and adjustment mechanisms

  • Supports controlled extend and retract motion in automation projects

  • Reduces system size compared to longer stroke actuators

  • Helps maintain consistent positioning in powered equipment

This linear actuator is a handy choice for furniture adjustments, small lifts, and automation builds where fast travel, quiet operation, and simple wiring make motion easy and reliable.
