12V High Torque Gear Motor With 550 RPM Micro Speed Reduction Geared Motor Center Output Shaft 37mm Diameter Gearbox All Metal Gears And Copper Rotor For Durable High Performance Drive

12V High-Torque Geared Motor with 550 RPM and All-Metal Gears
✔️ 1 x DC Geared Motor, 12V, 550RPM, 1:9, 37x22.5mm gearbox

This compact 12V DC geared motor offers reliable low-speed, high-torque drive for compact automation projects. It's commonly used in vending equipment, surveillance cameras, coin-operated machines, automatic doors, and small robotics where space is tight and control matters.

✅ Rated Voltage: 12V
✅ Speed: 550RPM
✅ Material: Metal
✅ Rated Torque: 0.7 Kg.cm
✅ Reduction Ratio: 1:9
✅ Rated Current: 0.5A
✅ D Shaped Output Shaft Size: 6x14mm (0.24" x 0.55")

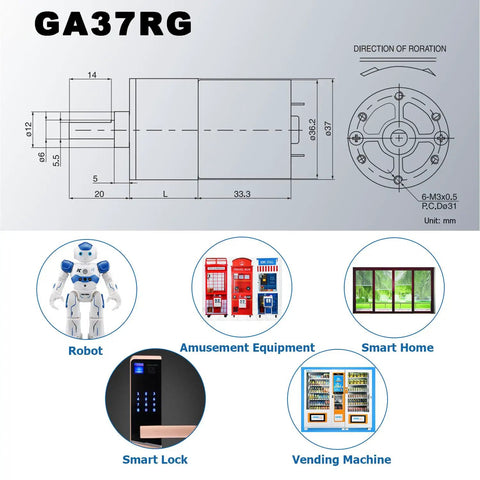

✅ Gearbox Size: 37x22.5mm (1.46" x 0.89")
✅ Motor Size: 36.2x33.3mm (1.43" x 1.31")
✅ Mounting Hole Size: M3 (not included)

💡 What is a common, handy use for a 12V geared motor in automation?

- Handy for compact automation like vending machines, cameras, and door actuators - Ideal for low-speed, high-torque drives in robotics and automation tasks - Durable all-metal gears and copper rotor help handle load and last longer under use
