12V High Force Linear Actuator Workhorse With 10 Inch Stroke 2000 Lbs Thrust Heavy Duty Industrial Grade IP65 Protected For Agriculture And Automotive Applications Built Tough PA-17

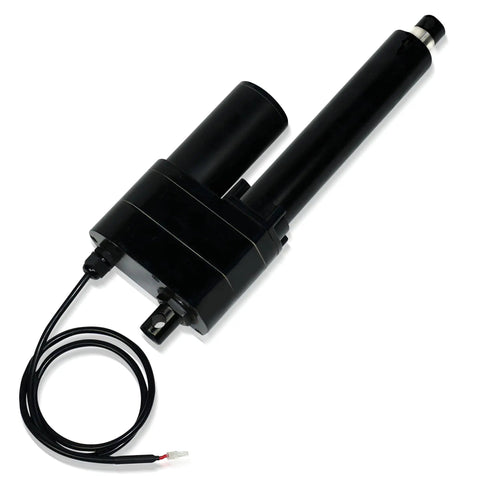

Single-unit 12V High-Force Linear Actuator: 2000 lb PA-17
✔️ Heavy-duty IP65, 2000 lb thrust, 4000 lb hold, 12V DC motor, 2-wire

The PA-17 is a rugged, 12V heavy-duty linear actuator built for consistent push and pull action. It's a common fit in agricultural equipment, industrial automation, gate operators, and service vehicles where reliable, weatherproof motion is essential.

✅ 2000 lb peak thrust; 4000 lb holding capacity

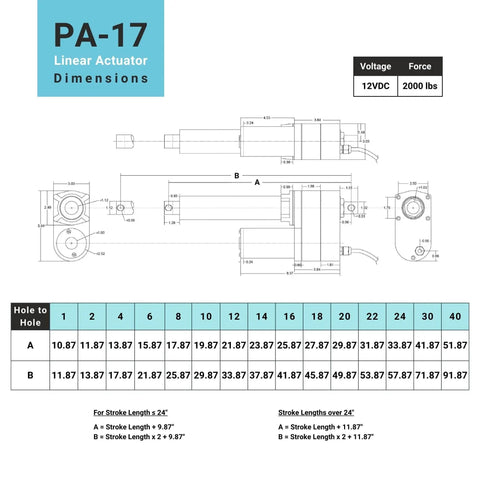

✅ Stroke length: 10 in (254 mm) with adjustable limit switches
✅ IP65 protection; stainless steel shaft; metal gears
✅ 12V brushed DC motor; 20A draw; simple 2-wire control; Molex Mini-Fit Jr 2-Pin connector
✅ Mechanical slip clutch for overload protection
✅ ISO 9001:2015 certified; 18-month warranty

💡 What is a high-force linear actuator commonly used for and why pick a 12V model?

It's handy for heavy-lift tasks and precise positioning in rugged environments.

• Push, lift, or tilt heavy components in agriculture, automotive, and industrial setups
• Compact, efficient power from common 12V systems
• Built-in protection and limit switches help with safe, repeatable moves
