12V DC Worm Gear Motor With PWM Speed Controller High Torque 80 RPM Reversible Self Locking Geared Motor 8mm D Shaft Gearbox For DIY Robot Projects Maker Vibe Rotating Tables And Door Locks
✔️ 80 RPM no-load, 60 RPM rated, 16 KG-CM torque, 12V
This compact 12V DC worm gear motor is built for DIY robots, automation projects, and small machinery. It combines a durable metal gearbox, reversible operation, and a self-locking design to hold position when power is off, making it ideal for door locks, rotating displays, and small actuation tasks.

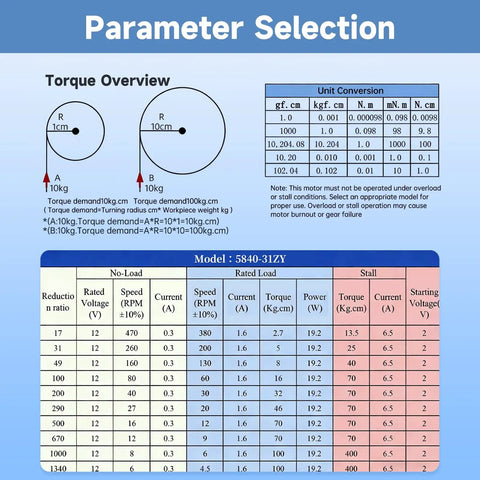

✅ Rated Voltage: 12V DC
✅ Reduction Ratio: 1:100
✅ No-Load Speed: 80 RPM
✅ Rated Speed (Load): 60 RPM
✅ Rated Torque: 16 KG-CM
✅ Stall Torque: 70 KG-CM
✅ Rated Power: 19.2W
✅ Output Shaft: D-shaped Ø7.9mm × 15.0mm (Ø0.31" × 0.59")
✅ Gearbox Size: 56.9mm × 39.9mm × 49.8mm
✅ Motor Size: Ø31.0mm × 54.9mm
✅ Wire Length: 0.74" (19mm)

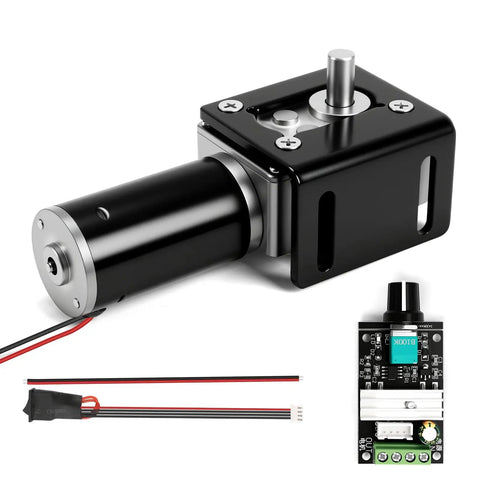

✅ Included: Worm Gear Motor x1, PWM Controller x1, Motor Mount x1, Lead Wire x1
✅ Mounting Holes: M4 (not included)
✅ Main Material: Metal
✅ Operating Temp: -10°C to 40°C
💡 What is a common use for a 12V worm gear motor with PWM controller? This handy device is widely used in small automation and hobby projects to provide controlled speed and holding torque.
- handy for small automation and robotics projects
- ideal for lock actuators, rotating tables, and hobby machines
- features self-locking gearbox to hold position when power is off
- PWM speed control lets you dial in speed for precise moves
