12V DC Nema 16 Stepper Motor With 39mm Frame 0.2N.m Torque 1.8 Degree Step 0.7A 2 Phase 4 Wire For CNC Machining And DIY Projects Includes 20 Tooth MXL Synchronous Pulley Wheel 5mm Shaft

12V DC NEMA16 Stepper Motor, 0.2N.m Torque, 1.8° (Single)
✔️ Includes 20-tooth MXL pulley, 5mm shaft, 2‑phase motor

Compact, two‑phase 12V DC NEMA 16 stepper motor designed for precise positioning in CNC machines, 3D printers, engravers, and other DIY automation setups. It delivers 0.2 N·m static torque with a 1.8° step and 0.7A current. Frame is 39.1mm with a 5mm output shaft; belt-drive ready with the included 20-tooth MXL pulley.

✅ Rated voltage: 12V DC
✅ Rated current: 0.7A
✅ Step angle: 1.8°
✅ Phase resistance: 6.8 Ω
✅ Static holding torque: 0.2 N·m

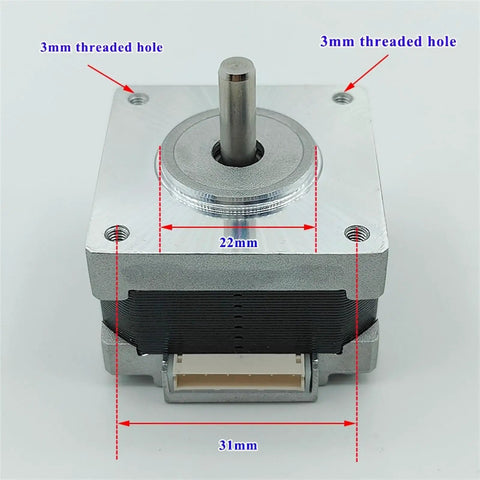

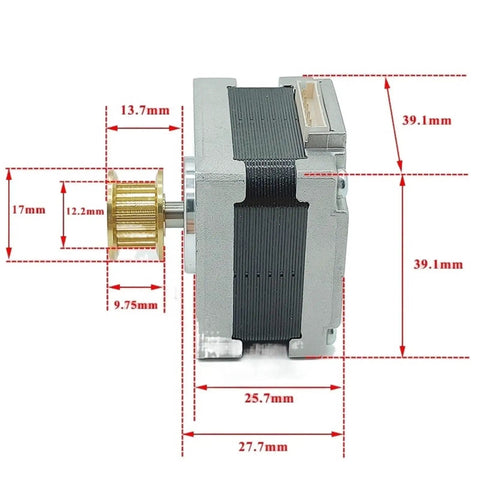

✅ Frame size: 39.1mm, height 25.7mm
✅ Output shaft: 5mm diameter, 13.7mm length

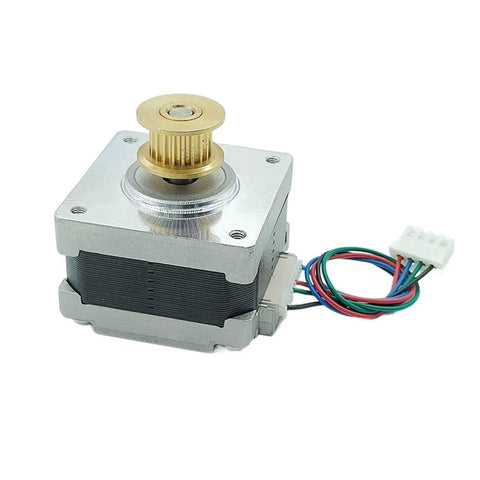

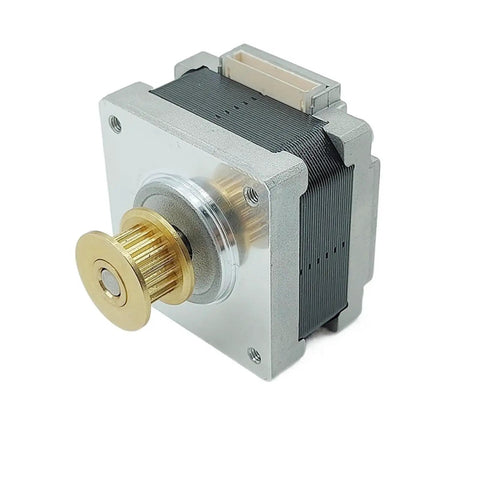

✅ Pulley included: 20 Teeth MXL Synchronous Pulley

💡 What is a 12V DC NEMA16 stepper motor used for in CNC and DIY projects?

This handy motor is designed to deliver precise, reliable motion control in compact setups.

- Handy for CNC machines, 3D printers, engravers, and automation projects
- 1.8° step angle provides accurate positioning with a holding torque of 0.2 N·m
- Includes a 20-tooth MXL pulley for belt-driven motion
✝️
