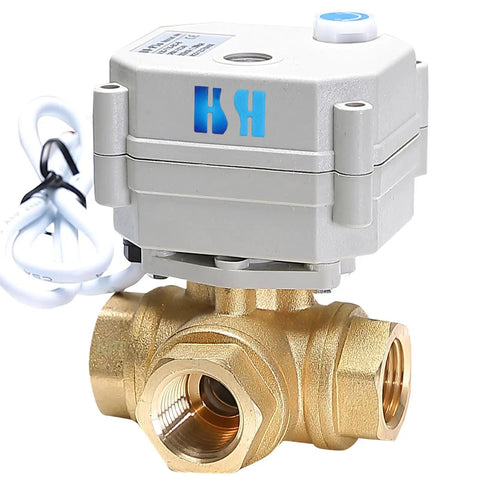

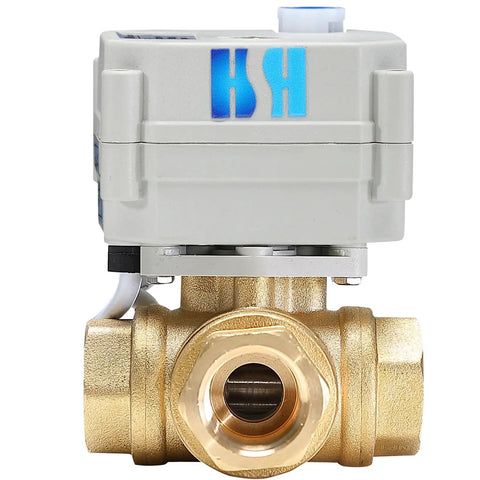

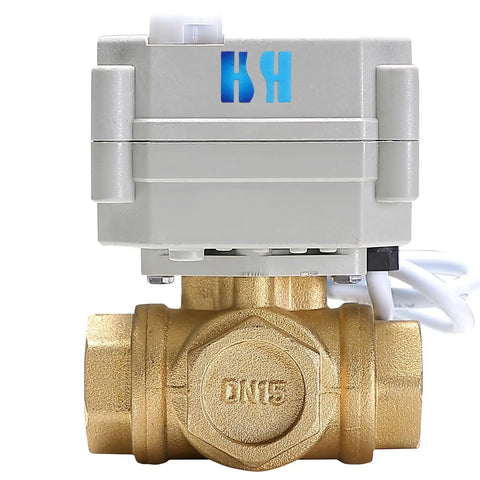

12V DC Motorized Brass Ball Valve With L Port, Three Way, NPT Inlet, Position Feedback, Reverse Polarity On Off, Your Go To Valve For HVAC Water Air And Chemical Systems
✔️ 3 N.m torque, 90° rotation, 1/2 in NPT, IP67, 70k cycles
This compact, brass-bodied 12V DC motorized ball valve is designed for precise on-off control in HVAC, water treatment, air systems, and chemical processes. Its rugged build, IP67 rating, and manual override make it ideal for reliable operation in demanding environments.
✅ Valve body: 1/2 in NPT brass body, IP67 protection
✅ Working voltage: 12VDC, current ≤500mA, life 70,000 cycles
✅ Actuator: 90° rotation, torque 3 N.m, integrated mechanical and electrical limits
✅ Seals & temp: FKM & PTFE seals, -15°C to 50°C ambient, liquid 2°C to 90°C

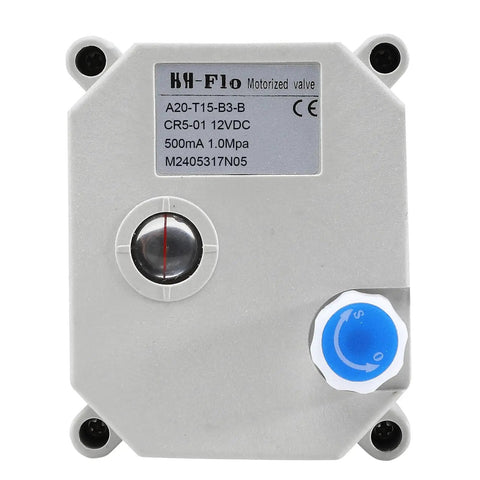

✅ Manual override: Yes, with clear status indicator for power-off operation
✅ Full bore design: Bidirectional flow, no leakage, suitable for dirty lines
💡 What is a 12V motorized brass ball valve used for in HVAC and fluid control systems? It's handy for automatic flow control in water, air, and chemical lines. - 12VDC valve for HVAC and process automation - Provides 90° actuation with feedback and reliable sealing - Replaces solenoid valves in rugged environments - IP67 rated for wet or dusty locations
